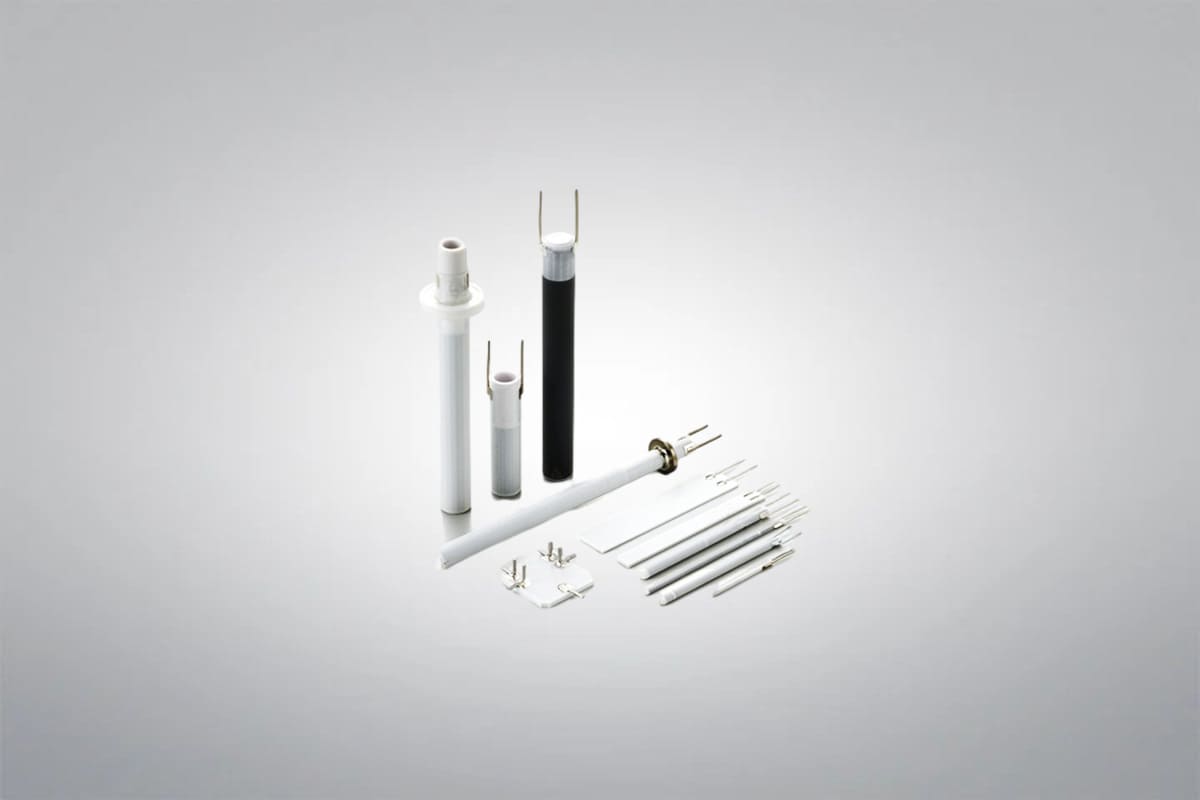

Alumina Heater
Alumina Heater
Purity: 95%, 96%, 99%, 99.5%, 99.7%, 99.95%
- Custom sizes and standard sizes in stock
- Quick Lead Time
- Competitive Price
Alumina Heater is a high-performance heating element designed and developed based on the ceramic lamination technology used in high-reliability integrated circuit packages. As a leading supplier and manufacturer of premium alumina products, Shanghai Yuepeng utilizes advanced machining centers to produce high-quality alumina heaters for a wide range of applications.
Alumina Heater Data Sheet
| Reference Code: | HM1982 |
| Purity: | 95%, 96%, 99%, 99.5%, 99.7%, 99.95% |
| Structure: | Plate, Rod, Tube |
| Color: | White or Ivory |
| Density: | 3.7-3.98 g/cm3 |
Alumina Heater Description
Alumina Heater is a highly reliable heating element. The heating element is printed inside the alumina ceramic body and sintered into a single unit. The shape and power can be easily adjusted, and multiple circuits can be designed for switching and temperature sensing functions. Alumina heaters are widely used in automotive, oil and gas equipment, and water heating. Shanghai Yuepeng can supply customized solutions to meet diverse industrial and research requirements.

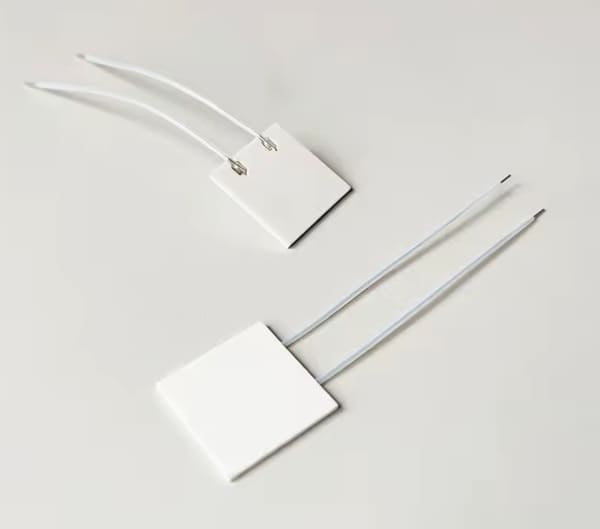

Plate Type Alumina Heater

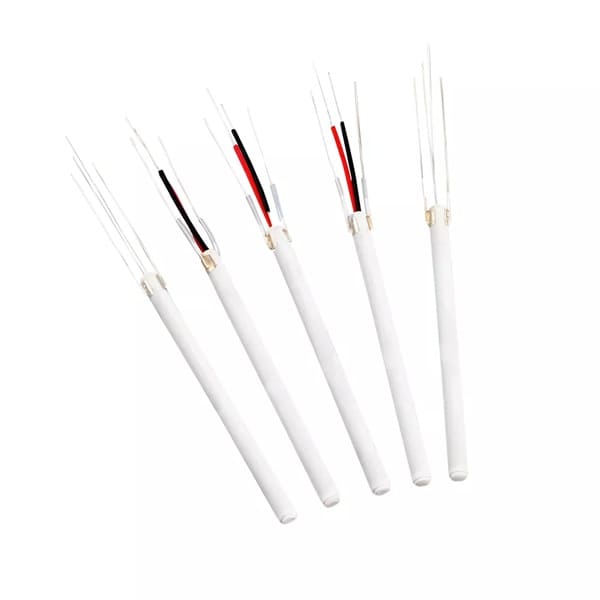

Rod Type Alumina Heater

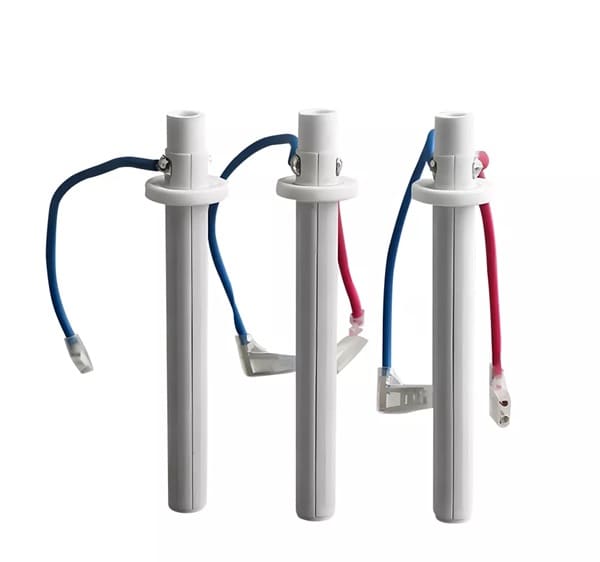

Tube Type Alumina Heater

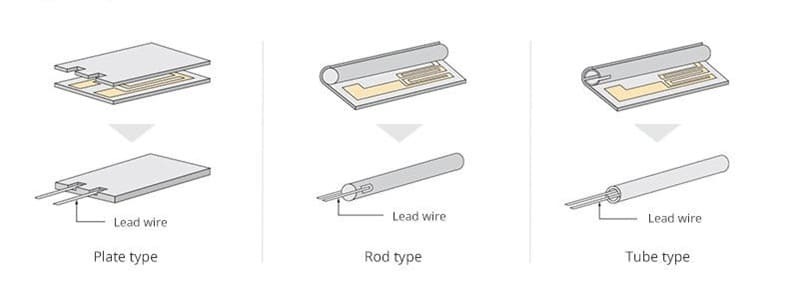

Alumina Heater Basic Structure
Alumina Heater Property Parameters
| Item | Value |
| Max operating temperature | MAX 1000℃ |
| Normal operating temperature | MAX 800℃ |
| Thermal conductivity (20℃) | 18 W/(m·k) |
| Specific heat (20℃) | 0.78×103 J/(kg·K) |
| Linear expansion coefficient (40-800℃) | 7.8×10-6/℃ |
Alumina Heater Specifications
Advanced Ceramics Hub can offer customized solutions for specific requirements, including complex shapes, through-holes, bonding to metals, etc. The standard dimensions are as follows:
| Plate Type | ||
| Length/Width | 160×160 mm or φ160 mm | |
| Thickness | 0.3-5.4 mm | |
| Tolerance | Length (or width): | 20 or more: ±1% |
| Less than 20: ±0.2 mm | ||
| Thickness: | 1 or more: ±10% | |
| Less than 1: ±0.1 mm | ||
| Warpage | 0.4/100 | |
| Rod/Tube | ||
| Length | Rod: MAX 120 mm | |
| Tube: MAX 200 mm | ||
| Outer diameter | Rod: φ2-φ50 mm | |
| Tube: φ3-φ20 mm | ||
| Tolerance | Length | 50mm or more: ±1% |
| Less than 50mm: ±0.5mm | ||
| Outer diameter | Φ10 or more: ±2% | |
| Less than φ10 mm: ±0.2mm | ||
| Warpage | 0.4/100 | |
Alumina Heater Advantages
- Rapid heating
- Small size and high watt density
- High insulation
- Direct water and kerosene heating
- Vacuum environment
- Oxidation and chemical resistance
- Output switching
- Temperature sensing
- Long product life
Alumina Heater Applications
- Semiconductor Processing: Alumina heaters provide precise, uniform heating in wafer processing, deposition, and etching equipment, where temperature control is critical.
- Medical Devices: Used in diagnostic instruments, sterilization units, and laboratory equipment due to their biocompatibility, chemical resistance, and fast heating response.
- Automotive Industry: Applied in sensor heaters, fuel cell systems, and emission control devices, ensuring reliable operation under extreme conditions.
- Aerospace and Defense: Integrated into de-icing systems, thermal sensors, and high-temperature testing setups where durability and stability are essential.
- Industrial Heating Equipment: Utilized in furnaces, hot plates, and precision heating systems for materials processing, offering excellent thermal shock resistance and long service life.
Aerospace Components
Industrial Machinery
Medical Devices- Aerospace and Automotive
Semiconductor Processing
Alumina Material Properties
Alumina Material Grades
It has a very high purity (99.95%) grade of Alumina (Aluminum Oxide) exhibiting an exceptional combination of mechanical and electrical properties. It features very high hardness, exceptional electrical resistivity, high-temperature mechanical stability and strength in addition to corrosion resistance and bio/chemical inertness.
Its high-temperature stability and electrical stability make it particularly suitable for high-temperature applications such as high voltage/frequency insulators, heating elements supports, etc
Physical Properties:
- Color: White
- Density: 3.98 g/cm3
Applications:
- High-temperature electrical insulators
- Very high voltage/frequency insulators
- Machine components where high wear resistance
is required in an oxidizing environment - Precision shafts in high-wear condition
- Unlubricated (vacuum) or gas/water lubricated
high speed sliding bearings - Shot blast nozzles
- Abrasive flow deflector plates/cones
- Valve seats
- Wire guides
It’s a high-purity grade of Alumina (Aluminum Oxide) and one of the high-performance grades in this range of materials. It features a 99.7% purity Alumina base material that provides a superior set of mechanical and electrical properties while maintaining a reasonable cost. It is a very hard-wearing technical ceramic offering and is ideally suited to a wide range of industrial applications where mechanical and electrical performance is of the essence and the material needs to perform adequately in aggressive environments.
It can be machined in the “green state”- that is before sintering takes place, thus ensuring a large variety of shapes and sizes. It can also be diamond ground to tight tolerances in the fully sintered state using diamond grinding.
Physical Properties:
- Color: Ivory
- Density: 3.9 g/cm3
Applications:
- Electronic components & substrates
- High-temperature electrical insulators
- High voltage insulators
- Laser tubes
- Machined components
- Mechanical seals
- Precision shafts and axles in high-wear environments
- Roller and ball bearings
- Seal rings
- Semiconductor parts
- Shot blast nozzles
- Thermocouple tubes
- Tap plates
- Valve seats
- Wear components
- Wire and thread guides
- Ballistic Armor
99.5% Purity Alumina is a high-performance engineering material with exceptional mechanical strength, high-temperature resistance, and excellent electrical insulation properties. It is widely used in industrial equipment, electronic components, medical devices, and aerospace applications.
Physical Properties:
- Color: Ivory
- Density: 3.9 g/cm3
Applications:
- Electronic components & substrates
- High-temperature electrical insulators
- High voltage insulators
- Laser tubes
- Machined components
- Mechanical seals
- Precision shafts and axles in high-wear environments
- Roller and ball bearings
- Seal rings
- Semiconductor parts
- Shot blast nozzles
- Thermocouple tubes
- Tap plates
- Valve seats
- Wear components
- Wire and thread guides
- Ballistic Armor
99% Purity Alumina Is a premium industrial ceramic material with excellent mechanical properties, ultra-high hardness, high-temperature resistance, and insulation performance. It can maintain stable chemical and physical properties even in extreme environments, making it widely used in semiconductors, electronic components, laser technology, and aerospace.
Physical Properties:
- Color: Ivory
- Density: 3.85 g/cm3
Applications:
- Electronic components & substrates
- High-temperature electrical insulators
- High voltage insulators
- Laser tubes
- Machined components
- Mechanical seals
- Precision shafts and axles in high-wear environments
- Roller and ball bearings
- Seal rings
- Semiconductor parts
- Shot blast nozzles
- Thermocouple tubes
- Tap plates
- Valve seats
- Wear components
- Wire and thread guides
- Ballistic Armor
It is a regular purity grade Alumina (Aluminum Oxide) and it is one of the workhorses of the technical ceramics industry. It features a 96% purity Alumina base material providing a balanced “cost to quality” ratio. It is a hard-wearing technical ceramic offering an excellent combination of both mechanical and electrical properties and is ideally suited to a wide range of industrial applications where cost is of the essence, but the material still needs to perform adequately from a mechanical and electrical standpoint.
It can be machined in the “green state”- that is before sintering takes place, thus ensuring a large variety of shapes and sizes. It can also be diamond ground to tight tolerances in the fully sintered state using diamond grinding.
Physical Properties:
- Color: White
- Density: 3.75 g/cm3
Applications:
- Electronic components & substrates
- High-temperature electrical insulators
- High voltage insulators
- Laser tubes
- Machined components
- Mechanical seals
- Precision shafts and axles in high-wear environments
- Roller and ball bearings
- Seal rings
- Semiconductor parts
- Shot blast nozzles
- Thermocouple tubes
- Tap plates
- Valve seats
- Wear components
- Wire and thread guides
- Ballistic Armor
95% Purity Alumina is an economical and practical engineering material. Its slightly lower alumina content reduces production costs while maintaining decent wear resistance and processing flexibility. It is commonly used in mechanical parts, electrical insulators, and wear-resistant bushings, offering an excellent cost-performance balance.
Physical Properties:
- Color: White
- Density: 3.7 g/cm3
Applications:
- Electronic components & substrates
- High-temperature electrical insulators
- High voltage insulators
- Laser tubes
- Machined components
- Mechanical seals
- Precision shafts and axles in high-wear environments
- Roller and ball bearings
- Seal rings
- Semiconductor parts
- Shot blast nozzles
- Thermocouple tubes
- Tap plates
- Valve seats
- Wear components
- Wire and thread guides
- Ballistic Armor
Alumina Ceramic Machining
Advanced ceramics are formed using methods such as injection molding, die pressing, isostatic pressing, slip casting, and extrusion. After sintering and densification, machining requires diamond grinding. Shanghai Yuepeng applies advanced green and biscuit machining to achieve complex shapes beyond traditional methods. Our machining center offers drilling, grinding, milling, polishing, sawing, tapping, threading, and turning, enabling the production of alumina ceramic components with high precision and complexity. During machining, the following precautions should be observed:
- Shrinkage Control: Alumina ceramics shrink by about 20% during sintering, requiring dimensional adjustments in the green body stage.
- Tolerance Control: Precise tolerances are unachievable in the green or pre-sintered state; fine machining should follow sintering.
- Diamond Grinding: Post-sintering, high-hardness alumina requires diamond grinding, as conventional methods fall short.
- Tool Selection: Diamond-coated tools or grinding wheels are essential to handle ceramic hardness and prevent tool damage.
- Temperature Control: Strict temperature management during sintering prevents cracking or deformation.
- Stress Management: Excessive stress during machining must be avoided to prevent brittle failure.
- Cutting Speed and Feed Rate: Controlled speeds and feeds ensure quality and extend tool life.
- Surface Treatment: Post-machining polishing removes defects, enhancing performance and appearance.
Alumina Ceramic Packaging
Alumina Ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
