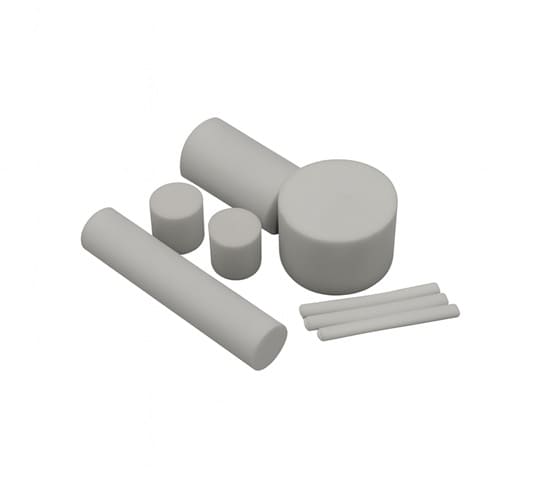

Aluminum Nitride Rod
Aluminum Nitride Rod
Purity: 95%-99%
- Custom sizes and standard sizes in stock
- Quick Lead Time
- Competitive Price
Aluminum Nitride Rod is a high-performance ceramic material with exceptional thermal conductivity, electrical insulation, and high-temperature resistance. It is widely used in electronic heat dissipation, semiconductor equipment, and high-temperature industries. As a leading supplier and manufacturer of premium alumina products, Shanghai Yuepeng can supply high-quality aluminum nitride rods with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Aluminum Nitride Rod Data Sheet
| Reference Code: | HM1919 |
| Purity: | 95%-99% |
| Density: | 3.32 g/cm3 |
| Appearance: | Dark Gray / Light Gray / Beige |

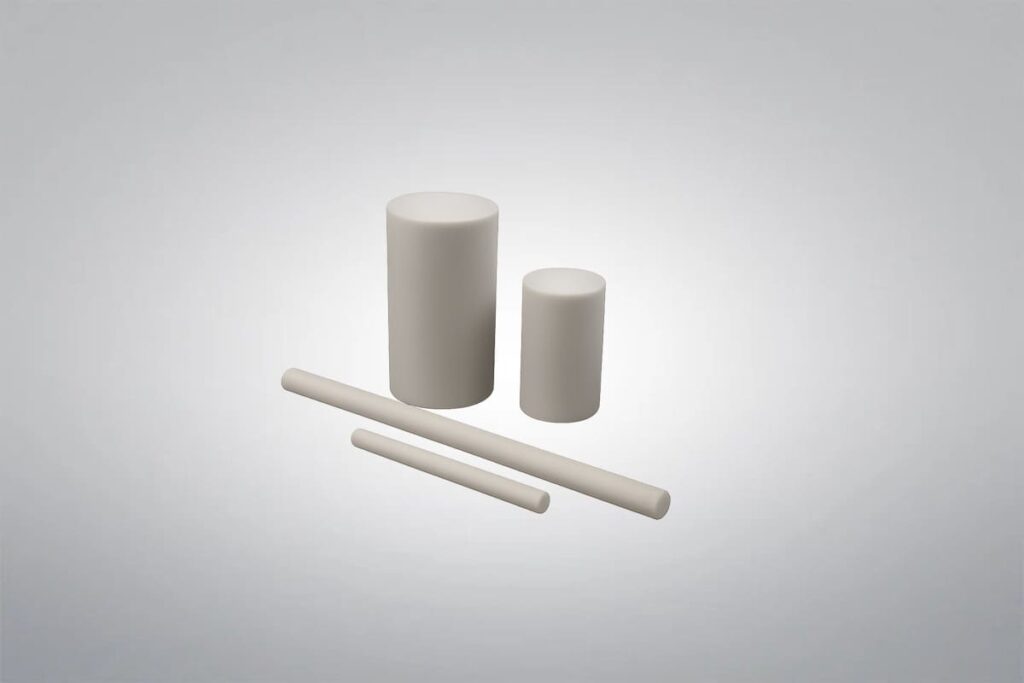

Aluminum Nitride Rod Description
Aluminum Nitride Rod is a high-performance ceramic material with excellent thermal conductivity, electrical insulation, and mechanical strength. It also has outstanding high-temperature resistance and chemical stability, enabling it to maintain superior performance even in harsh working environments. Due to its excellent heat management capabilities, it is ideal for thermal dissipation, effectively reducing the temperature of electronic devices. Shanghai Yuepeng can supply customized solutions in items of diameter, length, and surface finish to meet diverse industrial and research requirements.
Aluminum Nitride Rod Advantages
- High mechanical strength
- Good electrical insulation
- Low dielectric constant and dielectric loss
- Thermal expansion similar to silicon
- High thermal conductivity
- Excellent corrosion resistance
- Non-toxic
Aluminum Nitride Rod Applications
- Semiconductor Manufacturing: Used as insulating and thermally conductive rods in wafer processing and electronic packaging equipment.
- High-Temperature Furnaces: Serves as structural and support components in vacuum and plasma furnaces due to its excellent thermal stability.
- Power Electronics: Applied as heat-dissipating and insulating parts in high-power electronic assemblies, improving efficiency and reliability.
- Optoelectronic Devices: Function as a heat-conducting and electrically insulating component in LED modules, laser systems, and photodetectors.
- Aerospace and Automotive: Utilized in harsh-environment electronics, sensors, and control systems where both thermal conductivity and mechanical durability are required.
Semiconductor Equipment
Power Electronics
Vacuum and Plasma Systems
LED and Optoelectronics
Aerospace and Automotive
Aluminum Nitride Material Properties
Aluminum Nitride Material Grades
HMAN1000 is our standard high purity aluminium nitride with a thermal conductivity of 170 W/mK. This is the same thermal performance as our substrate material but offers the possibility of larger pieces in length/width and in thicknesses up to 30mm.
HMAN1000 has good coefficient of thermal expansion – matched to silicon and gallium nitride over wide temperature ranges.
HMAN100 Applications:
- High power insulators
- Laser components
- Water cooled heatsinks
- Power electronics
- Aerospace, medical and semiconductor components
HMAN1000S 170 W/mK is our standard high thermal conductivity substrate material, However, other high-performance grades are also available.
HMAN1000S Applications:
- Heat sinks
- Heat spreaders
- Laser heatsinks power rectifiers
- Aerospace, power electronics, rectifiers
HMAN2000 is one of our enhanced grades of aluminium nitride, offering all the mechanical performance of HMAN1000 with the enhanced benefits of 200 W/mK thermal conductance.
HMAN2000 Applications:
- Heat sinks
- Heat spreaders
- Laser heatsinks power rectifiers
- Aerospace, power electronics, rectifiers
HMAN3000 is one of our enhanced grades of aluminium nitride offering, all the mechanical performance of HMAN1000 with the enhanced benefits of 230 W/mK thermal conductance.
HMAN3000 Applications:
- Heat sinks
- Heat spreaders
- Laser heatsinks power rectifiers
- Aerospace, power electronics, rectifiers
HMAN4000 is one of our enhanced grades of aluminium nitride offering, all the mechanical performance of HMAN1000 with the enhanced benefits of 200 W/mK thermal conductance.
HMAN4000 Applications:
- Heat sinks
- Heat spreaders
- Laser heatsinks power rectifiers
- Aerospace, power electronics, rectifiers
Aluminum Nitride Ceramic Machining
Aluminum Nitride (AlN) ceramic machining is a precise process used to fabricate high-performance components from aluminum nitride materials. Machining aluminum nitride ceramics requires specialized equipment and techniques to handle their brittleness and hardness. Proper tooling and controlled environments are essential to avoid material damage and achieve the desired surface finish and dimensional accuracy. The common machining methods are as follows:
- Diamond Cutting: Diamond tools are used to achieve fine precision and smooth surface finishes, ideal for complex shapes.
- Laser Cutting: A non-contact method used for intricate shapes, with high precision and minimal thermal impact.
- Precision Grinding: Utilized to achieve fine tolerances and surface finishes. Requires special care to prevent cracking or chipping due to the ceramic’s brittleness.
- Wire EDM (Electrical Discharge Machining): A method often used for intricate cutting, especially for thin and complex geometries.
Aluminum Nitride Ceramic Packaging
Aluminum Nitride Ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
