Low-Oxygen Niobium Powder

low-oxygen niobium powder

Low-Oxygen Niobium Powder

  • Custom sizes and standard sizes in stock
  • Quick Lead Time
  • Competitive Price

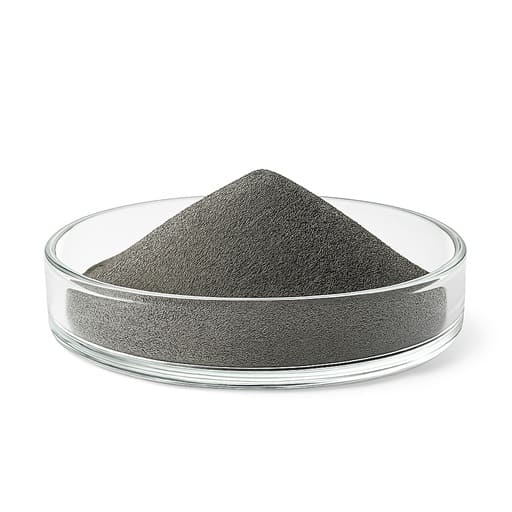

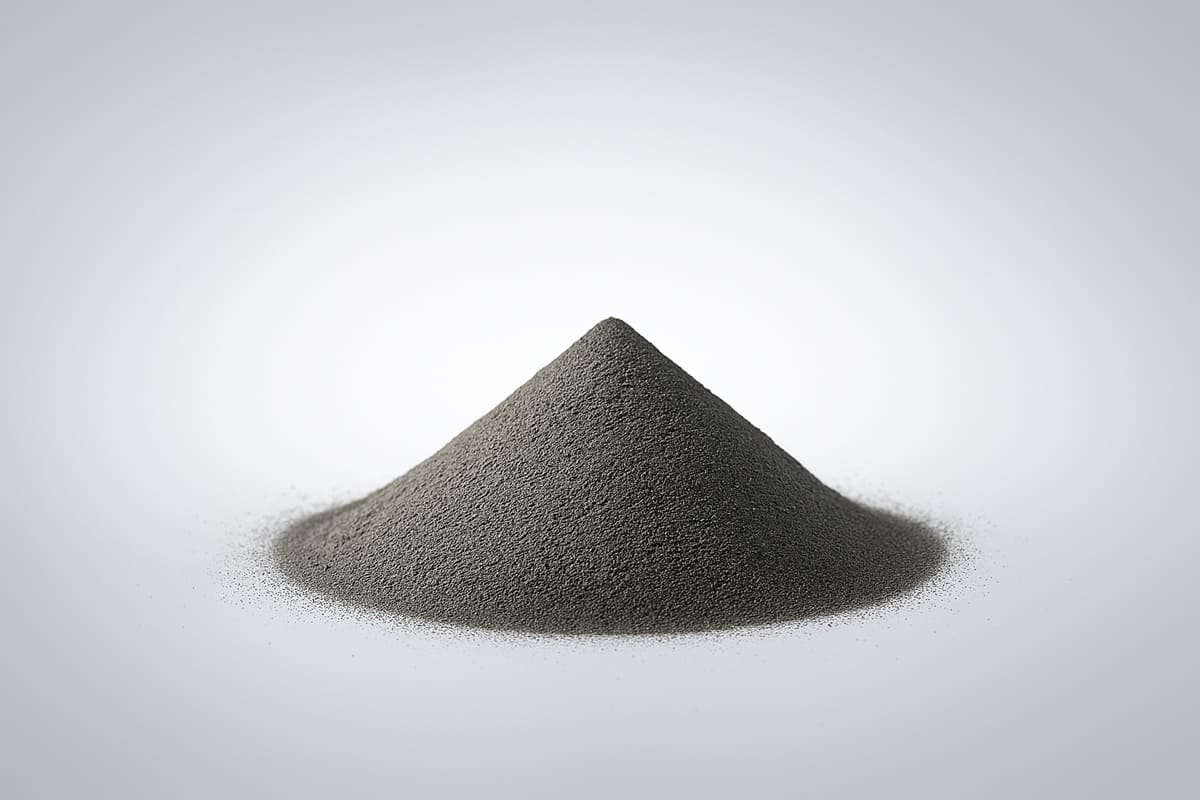

Low-oxygen Niobium Powder is a premium-grade material with purity≥99.9% (oxygen content as low as 400ppm) and particle size ranging from -300 mesh to -100 mesh (customized according to specific requirements). As a leading supplier and manufacturer of premium niobium products, Shanghai Yuepeng utilizes advanced machining centers to produce high-quality niobium and niobium alloy powders for a wide range of applications.

Get a Quote

Low-Oxygen Niobium Powder Data Sheet

Purity:≥99.9%
Particle Size:-100 mesh, -200 mesh, -300 mesh, or customized
Morphology:Irregular or Spherical

Low-Oxygen Niobium Powder

Low-oxygen Niobium Powder has ultra-high purity ≥99.9% and extremely low oxygen content (as low as 400ppm). Its superior chemical stability and sintering performance make it ideal for critical applications such as high-end electronic components, superconducting materials, aerospace, atomic energy, and marine development. To meet diverse application requirements, we have also developed a comprehensive range of high-performance powder products, including high-purity tantalum powder, low-oxygen tantalum powder (oxygen content as low as 200ppm), tantalum tungsten alloy powder, Nb521 niobium alloy powder, etc. Shanghai Yuepeng can offer high-quality, low-oxygen tantalum Powder in various particle sizes, customized to meet the specific requirements of various applications.

  • low-oxygen niobium powder

Low-Oxygen Niobium Powder Specifications

CategoryLow-oxygen Niobium Powder
GradeFND-1FND-2FND-3
Impurity Content (≤%)Ta0.03500.03500.0350
O0.04000.06000.0900
N0.02000.02500.0300
C0.00800.01200.0150
Fe0.00500.00700.0100
Si0.00300.00300.0030
Ni0.00200.00200.0020
Cr0.00200.00200.0020
W0.00500.00500.0050
Mo0.00200.00200.0020
Ti0.00200.00200.0020
Mn0.00200.00200.0020
Cu0.00200.00200.0020
Al0.00300.00300.0030
Screening-100 mesh-200 mesh-300 mesh
Oversized material is less than 5%.

Low-Oxygen Niobium Powder Applications

  • Superconducting Materials: Low-oxygen niobium powder is widely used to produce superconducting materials, especially in low-temperature superconductors. Niobium powder is used to make NbTi and Nb3Sn superconducting alloys for particle accelerators, nuclear magnetic resonance (NMR) devices, and magnetic resonance imaging (MRI) equipment in the medical field.
  • High-Performance Alloys: Low-oxygen niobium powder is commonly used in manufacturing high-temperature alloys, especially in the aerospace and energy industries for high-temperature environments. The added niobium enhances the strength, corrosion resistance, and oxidation resistance of these alloys.
  • Electronic Devices: In the electronics industry, low-oxygen niobium powder is used to manufacture efficient capacitors, batteries, and other high-frequency electronic devices, contributing to performance enhancement.
  • Steel Industry: Low-oxygen niobium powder is used as an alloying element in steel production, improving the strength, toughness, and corrosion resistance of steel, especially in the production of high-strength low-alloy (HSLA) steels and corrosion-resistant steels.
  • New Energy: Low-oxygen niobium powder is also used in materials related to new energy, such as solar cells and hydrogen storage materials.
  • Defense and Aerospace
  • Additive Manufacturing

    • Low-Oxygen Niobium Powder Packaging

    The high-quality low-oxygen niobium powder will be carefully handled to prevent damage during storage and transportation. Shanghai Yuepeng offers vacuum-sealed packaging, including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum, or can offer customized packaging as per specific requirements.

    Niobium Properties

    ItemValue
    Atomic number41
    Crystal structureBody centred cubic
    Electronic structureKr 4d⁴ 5s¹
    Valences shown2, 3, 4, 5
    Atomic weight( amu )92.9064
    Thermal neutron absorption cross-section( Barns )1.15
    Photo-electric work function( eV )4.3
    Atomic radius – Goldschmidt( nm )0.147
    Ionisation potential( No./eV )3/ 25.0
    Ionisation potential( No./eV )2/ 14.3
    Ionisation potential( No./eV )6/ 103
    Ionisation potential( No./eV )1/ 6.88
    Ionisation potential( No./eV )4/ 38.3
    Ionisation potential( No./eV )5/ 50.5
    ItemValue
    Material condition / TemperAnnealed (Soft)
    Material condition / TemperUn-annealed (Hard)
    Poisson’s ratio0.397
    Poisson’s ratio0.397
    Bulk modulus( GPa )170.3
    Bulk modulus( GPa )170.3
    Tensile modulus( GPa )104.9
    Tensile modulus( GPa )104.9
    Izod toughness( J m⁻¹ )10-120
    Hardness – Vickers( kgf mm⁻² )115
    Hardness – Vickers( kgf mm⁻² )160
    Tensile strength( MPa )330
    Tensile strength( MPa )585
    Yield strength( MPa )550
    Yield strength( MPa )240
    ItemValue
    Electrical resistivity( µOhmcm )16@20@20°C
    Superconductivity critical temperature( K )9.25
    Temperature coefficient( K⁻¹ )0.0026@0-100°C
    ItemValue
    Boiling point( °C )4742
    Density( gcm⁻³ )8.57@20°C
    ItemValue
    Melting point( °C )2468
    Latent heat of evaporation( J g⁻¹ )7360
    Latent heat of fusion( J g⁻¹ )290
    Specific heat( J K⁻¹ kg⁻¹ )268@25°C
    Thermal conductivity( W m⁻¹ K⁻¹ )53.7@0-100°C
    Coefficient of thermal expansion( x10⁻⁶ K⁻¹ )7.2@0-100°C

    Download

    • Company Profile

    Get A Quote

    We will check and get back to you in 24 hours.

    To customize your low-oxygen niobium powder, please provide the following details:

    1. Purity (Specify the purity level)
    2. Particle Size (Required size range)
    3. Morphology (Spherical, irregular, etc.)
    4. Quantity of the powder you need

    Once we have these details, we can provide you with a quote within 24 hours.

    We carry a wide variety of niobium and niobium alloy products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

    DFARS (Defense Federal Acquisition Regulation Supplement) compliance is primarily concerned with the sourcing of materials for defense-related applications in the United States. According to DFARS, certain materials used in defense must be sourced from the United States or qualifying countries.

    If you have specific niobium materials that are subject to DFARS, please let us know in advance and we will confirm.

    At Shanghai Yuepeng Tech, we take this responsibility seriously. We adhere to all applicable laws and regulations, including Section 1502 of the Dodd-Frank Act. Our company operates with a strict code of ethics and is committed to only partnering with suppliers who share our dedication to responsible sourcing. We support the initiatives and programs aimed at promoting “conflict-free” supply chains and work diligently to ensure that our products meet these standards.

    It is a high-purity niobium (Nb) powder specifically processed to have an extremely low oxygen content, typically below 500 ppm (parts per million). This is crucial for applications where oxygen impurities would degrade performance.

    Oxygen impurities can embrittle niobium, reduce its electrical conductivity, and lower its superconducting performance. Low oxygen is essential for maintaining ductility, high thermal/electrical conductivity, and other key properties.

    It must be stored in a sealed, airtight container under an inert gas atmosphere (like argon) to prevent moisture and air exposure. Handling should be done in gloveboxes to minimize oxygen pickup.

    Shanghai Yuepeng Tech, established in 2022 in Shanghai, China, is a specialized supplier and manufacturer of niobium and niobium alloys. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.
