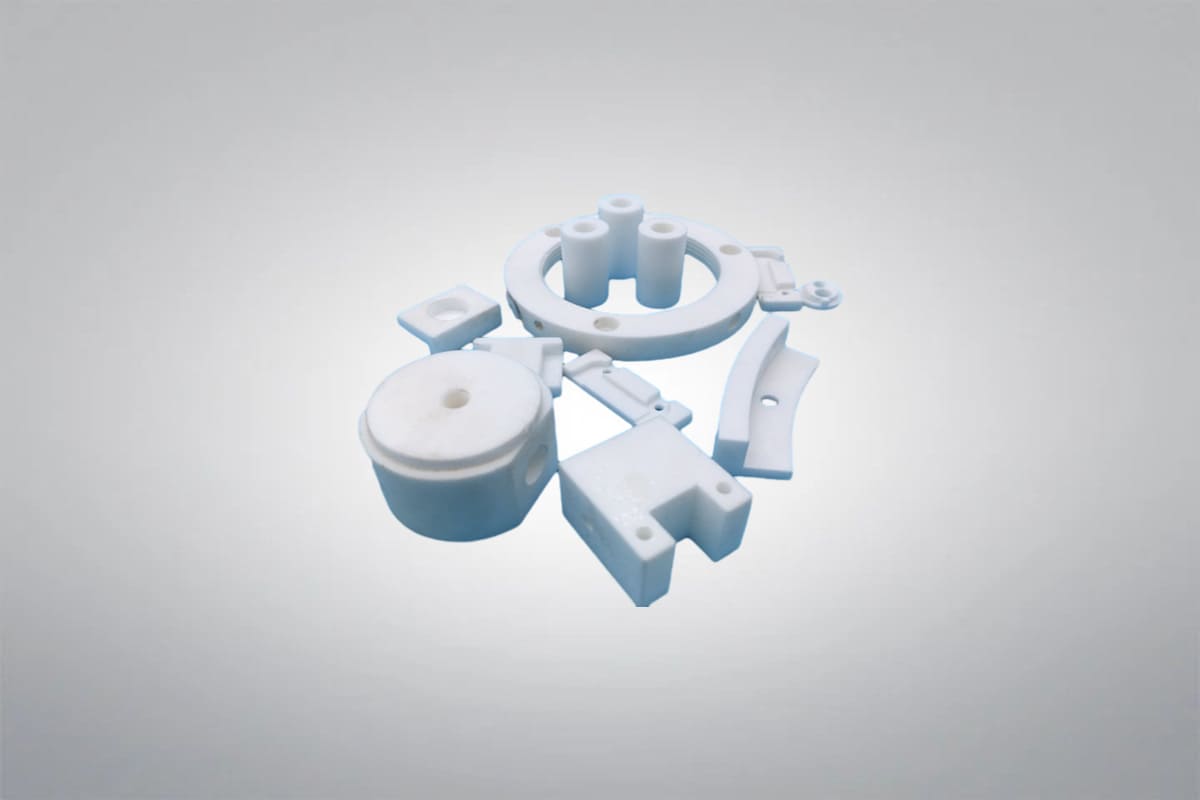

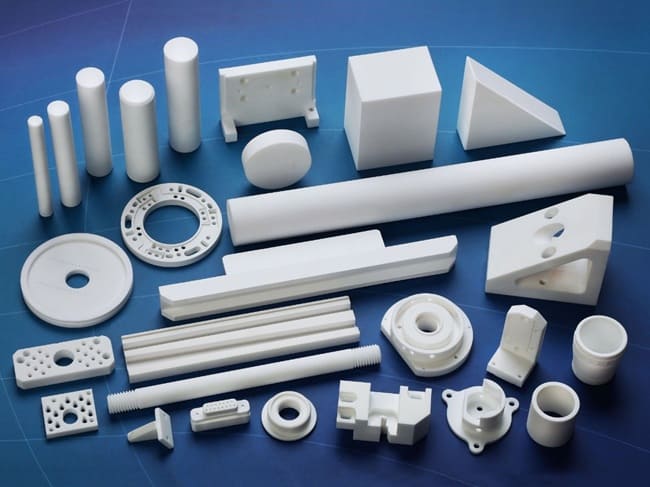

Macor Custom Parts
Macor Custom Parts
- Custom sizes and standard sizes in stock
- Quick Lead Time
- Competitive Price
Macor Custom Parts are precision-engineered components made from high-performance glass-ceramic, designed to meet complex requirements in advanced applications. These parts can be machined into intricate shapes using standard metal tools, without the need for sintering or specialized ceramic processing. Offering excellent electrical insulation, dimensional stability, and resistance to high temperatures (up to 1000°C without load), Macor custom parts are commonly used in aerospace, semiconductor, medical, and high-vacuum systems. As a leading supplier and manufacturer of premium macor machinable glass ceramic products, Shanghai Yuepeng can supply high-quality macor custom parts with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Macor Custom Parts Data Sheet
| Color: | White |
| Material Composition: | Fluorphlogopite & Borosilicate Glass |
| Dimensions: | Customized |
| Processing Precision: | 0.01mm |
| Roughness: | 0.8μm |
Macor Custom Parts Description
Macor Custom Parts provides a reliable solution for applications that demand both thermal resistance and design flexibility. Unlike conventional ceramics, Macor can be machined into detailed geometries—threads, holes, slots—without cracking or requiring post-firing. Its non-porous structure ensures zero outgassing, making it ideal for ultra-high vacuum and cleanroom environments. Engineers and designers often choose Macor custom parts for electrical feedthroughs, insulating fixtures, or mounting plates, especially when tight tolerances and rapid turnaround are critical. The ability to fabricate directly from raw blocks speeds up development and reduces tooling costs.
Macor Machinable Glass Ceramic Chemical Composition
| Element / Compound | Approximate Weight (%) |
|---|---|
| Silicon (SiO₂) | 46% |
| Magnesium (MgO) | 17% |
| Aluminum (Al₂O₃) | 16% |
| Potassium (K₂O) | 10% |
| Boron (B₂O₃) | 7% |
| Fluorine (F) | 4% |
Macor Custom Parts Features
- Complex Geometry Machinability: Can be machined into intricate shapes—slots, threads, and grooves—using standard metalworking tools, with no need for post-firing.
- Wide Operating Temperature Range: Performs reliably from –270°C to +800°C, making it suitable for cryogenic and high-heat applications.
- Excellent Electrical Insulation: Offers high dielectric strength and low electrical conductivity, ideal for precision electronic components.
- Zero Porosity and Outgassing: Fully dense and non-porous, Macor does not outgas in vacuum conditions, perfect for aerospace and semiconductor use.
- High Dimensional Stability: Maintains tight tolerances even under thermal cycling, ensuring consistent performance in critical assemblies.
Macor Custom Parts Applications
- Semiconductor Manufacturing: Macor custom parts are used in wafer handling, etching, and deposition systems due to their excellent dimensional stability and resistance to outgassing in vacuum environments.
- Aerospace Engineering: The material’s machinability and ability to withstand high temperatures make Macor parts suitable for thermal insulation, electrical isolation, and precision components in aerospace instruments.
- Medical Equipment: Macor custom parts are used in imaging devices, diagnostic instruments, and high-vacuum systems where both electrical insulation and non-contamination are essential.
- High-Temperature Furnaces: Macor components serve as fixtures, supports, and insulating parts inside high-temperature furnaces and thermal processing systems.
- Optical and Laser Systems: With low thermal expansion and good mechanical strength, Macor custom parts are applied in optical mounts, laser housings, and precision alignment assemblies.
Semiconductor Etching
Defense and Aerospace
Medical Devices
High-Temperature Furnaces
Optical and electronic industries
Macor Machinable Glass Ceramic Properties
Macor Machinable Glass Ceramic Material Machining
Macor is one of the rare ceramics that can be machined using standard metalworking tools without the need for post-sintering processes. This makes it especially useful for prototyping and custom part production with tight tolerances. However, understanding its machining behavior is key to achieving clean, precise results.
- Standard Tool Compatibility: Macor can be drilled, milled, turned, and tapped using regular carbide or high-speed steel tools, eliminating the need for diamond tooling.
- No Plastic Deformation: Unlike metals or plastics, Macor does not deform before breaking. Operators must prevent stress concentrations to avoid edge chipping or cracking.
- Machining Precision: Surface finishes up to 0.5 µm and tolerances as tight as ±0.005 mm are achievable with careful planning and skilled handling.
- Dry Machining Preferred: Coolants are generally not required. Dry machining helps prevent contamination and simplifies cleanup in high-purity applications.
- Practice Recommended: Due to Macor’s unique cutting behavior, it’s recommended to practice machining techniques on scrap material before processing final components.
Macor Machinable Glass Ceramic Packaging
Macor machinable glass ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of the products in their original condition.
