Macor Plate/Sheet/Disc
Macor Plate/Sheet/Disc
- Custom sizes and standard sizes in stock
- Quick Lead Time
- Competitive Price
Macor Plate/Sheet/Disc is made from high-purity glass-ceramic material that can be machined with standard tools, allowing for complex shapes and tight tolerances without the need for post-firing. It offers excellent electrical insulation, dimensional stability, and can operate in vacuum environments up to 1000°C. This material is widely used in semiconductor fixtures, aerospace components, and laboratory equipment where precision, cleanliness, and thermal performance are critical. As a leading supplier and manufacturer of premium macor machinable glass ceramic products, Shanghai Yuepeng can supply high-quality macor plate/sheet/disc with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Macor Plate/Sheet/Disc Data Sheet
| Color: | White |
| Material Composition: | Fluorphlogopite & Borosilicate Glass |
| Dimensions: | Customized |
| Processing Precision: | 0.01mm |
| Roughness: | 0.8μm |
Macor Plate/Sheet/Disc Description
Macor Plate/Sheet/Disc is a high-performance glass-ceramic known for excellent electrical insulation, resistance from -270°C to +800°C, and strong chemical stability. Its fine crystalline structure, including mica, helps stop microcracks and withstand thermal shock. With a low thermal expansion rate, it stays dimensionally stable under harsh thermal cycles, ideal for vacuum systems and precision seals. It can be machined with standard metal tools without molds or sintering, reducing lead times and costs. Widely used in aerospace, medical, scientific, and electronic vacuum systems, Macor offers a smart alternative to PTFE, alumina, or boron nitride for complex or thin-walled parts.

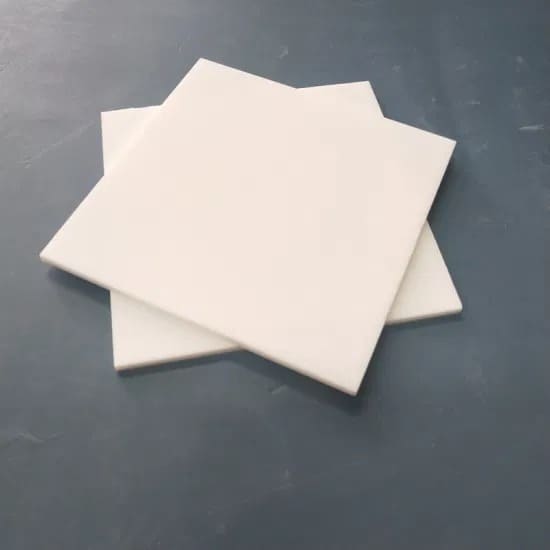

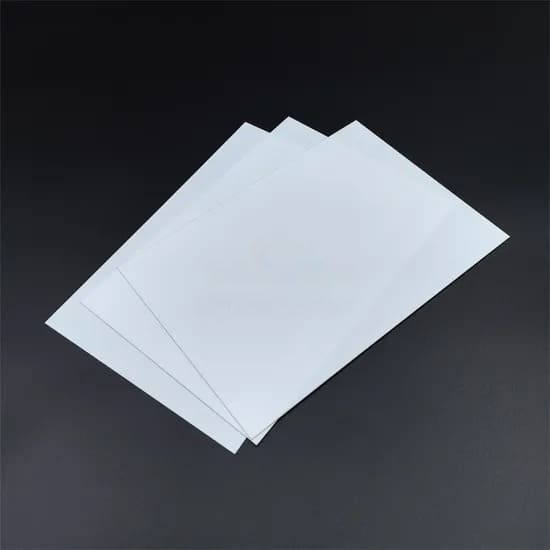

Macor plate Macor Sheet

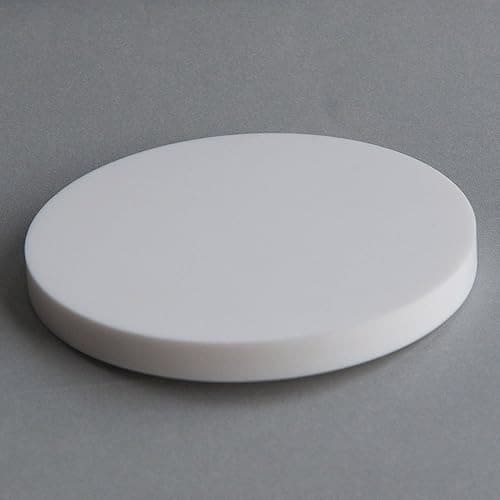

Macor Disc
Macor Plate/Sheet/Disc Chemical Compositions
| Element / Compound | Approximate Weight (%) |
|---|---|
| Silicon (SiO₂) | 46% |
| Magnesium (MgO) | 17% |
| Aluminum (Al₂O₃) | 16% |
| Potassium (K₂O) | 10% |
| Boron (B₂O₃) | 7% |
| Fluorine (F) | 4% |
Macor Plate/Sheet/Disc Features
- Wide Temperature Range: Operates reliably from –270°C to +800°C, suitable for both cryogenic and high-temperature environments.
- Excellent Machinability: Can be machined to tight tolerances using standard metalworking tools—no sintering or post-processing required.
- Low Thermal Expansion: Offers exceptional dimensional stability, making it ideal for precision components and vacuum sealing.
- Electrical Insulation: Provides high dielectric strength and low conductivity, essential for electronic and high-voltage applications.
- Corrosion and Chemical Resistance: Inert to most acids, alkalis, and gases, ensuring long-term durability in harsh conditions.
Macor Plate/Sheet/Disc Applications
- Semiconductor Equipment: Macor plates, sheets, and discs are used as chamber liners, insulating plates, and wafer supports in semiconductor fabrication due to their low outgassing and high purity.
- High-Temperature Fixtures: They serve as stable support plates and insulation barriers in furnaces and heat treatment systems, maintaining structural integrity under thermal stress.
- Aerospace and Defense: Macor plates and discs are used for electrical isolation, mounting substrates, and precision thermal shields in aerospace instruments and control systems.
- Optical and Laser Devices: These components are applied as base plates, mirror mounts, and optical holders, benefiting from Macor’s low thermal expansion and dimensional precision.
- Medical and Analytical Instruments: Macor plates and sheets are employed in laboratory and diagnostic equipment requiring non-contaminating, electrically insulating materials with excellent machinability.
High-Temperature Insulating Parts
Optical and electronic industries
Medical Devices
Semiconductor Equipment
Defense and Aerospace
Macor Machinable Glass Ceramic Properties

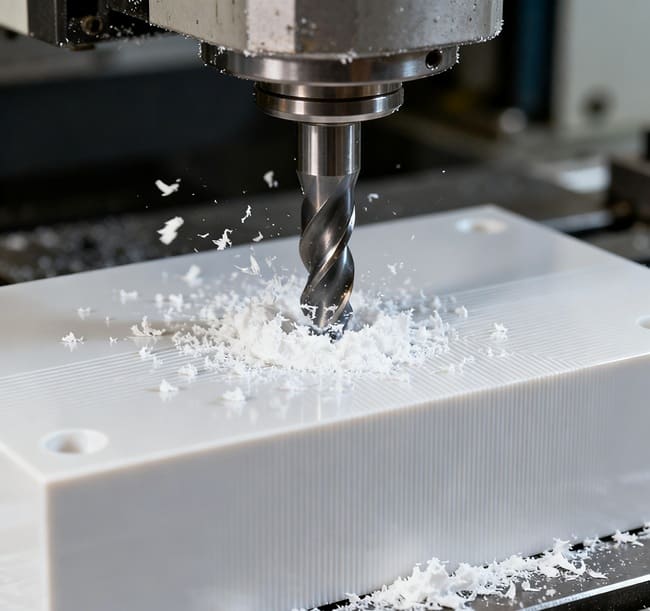

Macor Machinable Glass Ceramic Material Machining
Macor is one of the rare ceramics that can be machined using standard metalworking tools without requiring post-sintering processes. This makes it especially useful for prototyping and custom part production with tight tolerances. However, understanding its machining behavior is key to achieving clean, precise results.
- Standard Tool Compatibility: Macor can be drilled, milled, turned, and tapped using regular carbide or high-speed steel tools, eliminating the need for diamond tooling.
- No Plastic Deformation: Unlike metals or plastics, Macor does not deform before breaking. Operators must prevent stress concentrations to avoid edge chipping or cracking.
- Machining Precision: Surface finishes up to 0.5 µm and tolerances as tight as ±0.005 mm are achievable with careful planning and skilled handling.
- Dry Machining Preferred: Coolants are generally not required. Dry machining helps prevent contamination and simplifies cleanup in high-purity applications.
- Practice Recommended: Due to Macor’s unique cutting behavior, it’s recommended to practice machining techniques on scrap material before processing final components.
Macor Machinable Glass Ceramic Packaging
Macor machinable glass ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of the products in their original condition.
