Molybdenum Foam

molybdenum foam

Molybdenum Foam

  • Custom sizes and standard sizes in stock
  • Quick Lead Time
  • Competitive Price

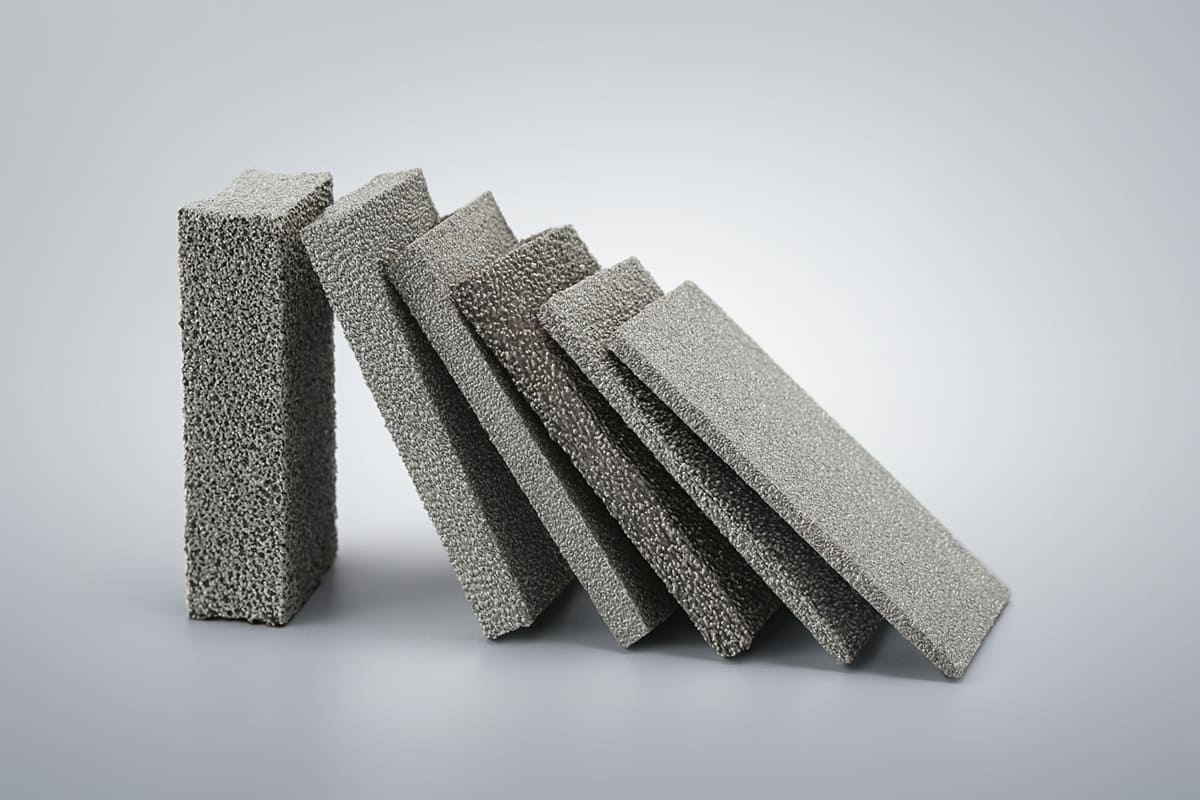

Molybdenum Foam is a porous metal material made of high-purity molybdenum, exhibiting low density and high strength. As a leading supplier and manufacturer of premium molybdenum products, Shanghai Yuepeng utilizes advanced machining centers to produce high-precision molybdenum foam products for a wide range of applications.

Get a Quote

Molybdenum Foam Data Sheet

Reference:HMMO1352
Material:Pure Mo361
Purity:99.95%-99.99%
Shape:Disc, Sheet, Tube, or Customized

Molybdenum Foam

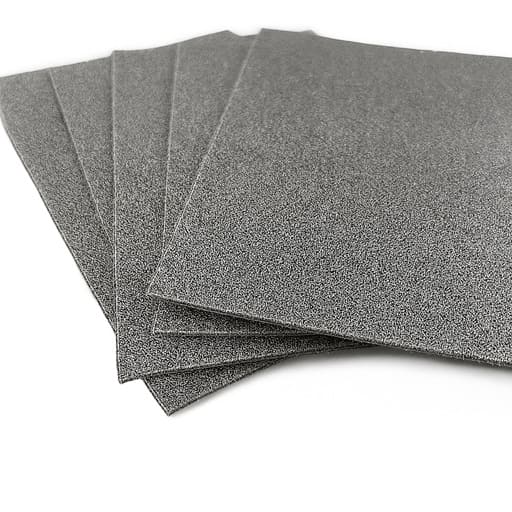

Molybdenum Foam is made of high-purity molybdenum or molybdenum alloy material, possessing a high porosity structure and a large specific surface area. It is widely applied in filter and catalyst carrier areas. It is also commonly used as battery electrode material. Shanghai Yuepeng can supply customized solutions according to specific requirements at competitive prices.

  • molybdenum foam

Molybdenum Foam Material Chemical Composition

Material MoImpurities, (≤%）
AlCaFeMgNiSiCNOLa2O3
Mo1Bal.0.0020.0020.0100.0020.0050.010.010.0030.008–
Mo2Bal.0.0050.0040.0150.0050.0050.010.020.0030.020–

Molybdenum Foam Features

  • High-temperature stability
  • Electrical and thermal conductivity
  • Good corrosion resistance
  • High porosity
  • Low density
  • Large specific surface area

Molybdenum Foam Applications

  • Catalyst Carriers: Molybdenum foam has a high specific surface area and good electrical conductivity, making it an ideal catalyst carrier, especially at high temperatures and in corrosive environments.
  • Filtration Materials: Molybdenum foam can be used for efficient filtration and is suitable for filtration systems for gases and liquids.
  • Battery Electrode Materials: Molybdenum foam is also used in battery electrode materials.
  • Thermal Management Materials: The high thermal conductivity of molybdenum foam makes it suitable for thermal management applications such as heat sinks and heat exchangers.
  • Acoustic Materials: Molybdenum foam is also used in acoustic materials.
  • Defense and Aerospace
  • Medical Devices

    • Molybdenum Foam Packaging

    The Molybdenum Foam is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

    Molybdenum Properties

    ItemValue
    Atomic number42
    Crystal structureBody centred cubic
    Electronic structureKr 4d⁵ 5s¹
    Valences shown2, 3, 4, 5, 6
    Atomic weight( amu )95.94
    Thermal neutron absorption cross-section( Barns )2.65
    Photo-electric work function( eV )4.2
    Natural isotope distribution( Mass No./% )95/ 15.9
    Natural isotope distribution( Mass No./% )96/ 16.7
    Natural isotope distribution( Mass No./% )98/ 24.1
    Natural isotope distribution( Mass No./% )97/ 9.6
    Natural isotope distribution( Mass No./% )92/ 14.8
    Natural isotope distribution( Mass No./% )94/ 9.3
    Natural isotope distribution( Mass No./% )100/ 9.6
    Atomic radius – Goldschmidt( nm )0.14
    Ionisation potential( No./eV )2/ 16.15
    Ionisation potential( No./eV )5/ 61.2
    Ionisation potential( No./eV )Jun-68
    Ionisation potential( No./eV )1/ 7.10
    Ionisation potential( No./eV )3/ 27.2
    Ionisation potential( No./eV )4/ 46.4
    ItemValue
    Material condition / TemperAnnealed (Soft)
    Material condition / TemperUn-annealed (Hard)
    Poisson’s ratio0.293
    Poisson’s ratio0.293
    Bulk modulus( GPa )261.2
    Bulk modulus( GPa )261.2
    Tensile modulus( GPa )324.8
    Tensile modulus( GPa )324.8
    Hardness – Vickers( kgf mm⁻² )250
    Hardness – Vickers( kgf mm⁻² )200
    Tensile strength( MPa )485-550
    Tensile strength( MPa )620-690
    Yield strength( MPa )550
    Yield strength( MPa )415-450
    ItemValue
    Electrical resistivity( µOhmcm )5.7@20@20°C
    Superconductivity critical temperature( K )0.915
    Temperature coefficient( K⁻¹ )0.00435@0-100°C
    Thermal emf against Pt (cold 0C – hot 100C)( mV )1.45
    ItemValue
    Boiling point( °C)4612
    Density( gcm⁻³ )10.22@20°C
    ItemValue
    Melting point( °C )2617
    Latent heat of evaporation( J g⁻¹ )6153
    Latent heat of fusion( J g⁻¹ )290
    Specific heat( J K⁻¹ kg⁻¹ )251@25°C
    Thermal conductivity( W m⁻¹ K⁻¹ )138@0-100°C
    Coefficient of thermal expansion( x10⁻⁶ K⁻¹ )5.1@0-100°C

    Download

    • Company Profile

    Get A Quote

    We will check and get back to you in 24 hours.

    To customize your molybdenum foam, please provide the following details:

    1. Porosity
    2. Cell Size (PPI)
    3. Density
    4. Thickness
    5. Size and Shape
    6. Purity (Specify the purity of material required.)
    7. Quantity of the products you need
    8. Alternatively, you can provide a drawing with your specifications.

    Once we have these details, we can provide you with a quote within 24 hours.

    We carry a wide variety of molybdenum and molybdenum alloy products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

    DFARS (Defense Federal Acquisition Regulation Supplement) compliance is primarily concerned with the sourcing of materials for defense-related applications in the United States. According to DFARS, certain materials used in defense must be sourced from the United States or qualifying countries.

    If you have specific molybdenum materials that are subject to DFARS, please let us know in advance and we will confirm.

    At Shanghai Yuepeng Tech, we take this responsibility seriously. We adhere to all applicable laws and regulations, including Section 1502 of the Dodd-Frank Act. Our company operates with a strict code of ethics and is committed to only partnering with suppliers who share our dedication to responsible sourcing. We support the initiatives and programs aimed at promoting “conflict-free” supply chains and work diligently to ensure that our products meet these standards.

    Its key properties include: extremely high temperature resistance (melting point 2622°C), excellent thermal and electrical conductivity, high structural strength, light weight, and a very large surface area. These advantages make it highly promising for applications like high-temperature insulation, catalyst supports, and aerospace.

    The core difference is temperature resistance. Molybdenum foam has a much higher melting point and maximum service temperature than nickel foam, making it suitable for extreme environments. However, nickel foam is less expensive and more common in room-temperature applications like battery electrodes.

    Shanghai Yuepeng Tech, established in 2022 in Shanghai, China, is a specialized supplier and manufacturer of molybdenum and molybdenum alloys. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.
