Molybdenum Tungsten Alloy

molybdenum tungsten alloy

Molybdenum Tungsten Alloy

  • Custom sizes and standard sizes in stock
  • Quick Lead Time
  • Competitive Price

Molybdenum Tungsten Alloy is a high-performance alloy material composed of molybdenum and tungsten, whose high-temperature strength, recrystallization temperature and corrosion resistance have been comprehensively improved. As a leading supplier and manufacturer of premium molybdenum products, Shanghai Yuepeng utilizes advanced machining centers to produce high-precision molybdenum tungsten alloy products for a wide range of applications.

Get a Quote

Molybdenum Tungsten Alloy Data Sheet

Reference:HMMO1349
Material:MoW70, MoW50, or customized
Temper:Annealed and Unannealed

Molybdenum Tungsten Alloy

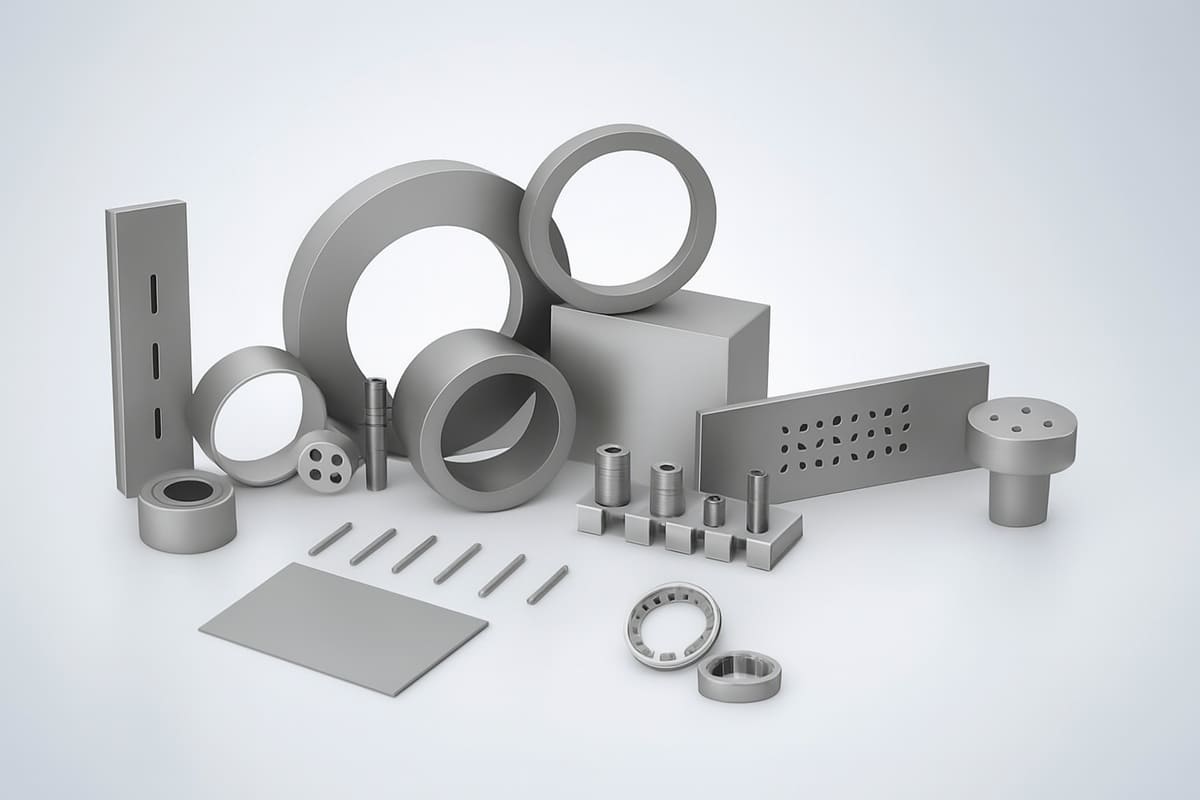

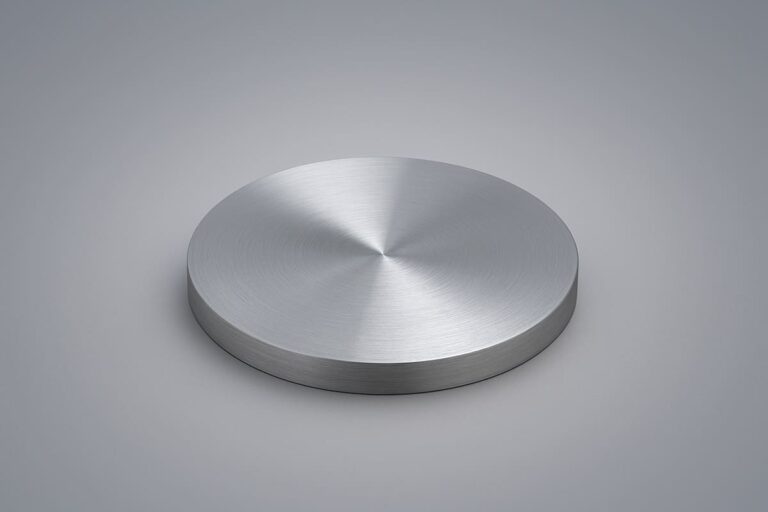

Molybdenum Tungsten Alloy is composed of molybdenum and tungsten and is obtained through powder metallurgy. HM provides high-precision molybdenum tungsten alloy products in various forms, including rods, plates, sheets, bars, tubes, blocks, pellets, wires, and discs, all crafted to ensure exceptional quality and customer satisfaction. We manufacture large, complex parts using isostatic pressure molding technology, while smaller parts are produced through extrusion, molding, and injection molding techniques. Additionally, rods and sheets are fabricated using forging and rolling processes.

  • molybdenum tungsten alloy

Molybdenum Tungsten Alloy Advantages

MoW Alloy vs. Pure MoMoW Alloy vs. Pure W
1. The recrystallization temperature of MoW is about 100°C higher.
2. Better corrosion resistance to molten zinc.
3. Higher strength		1. Better molding performance
2. Lower density

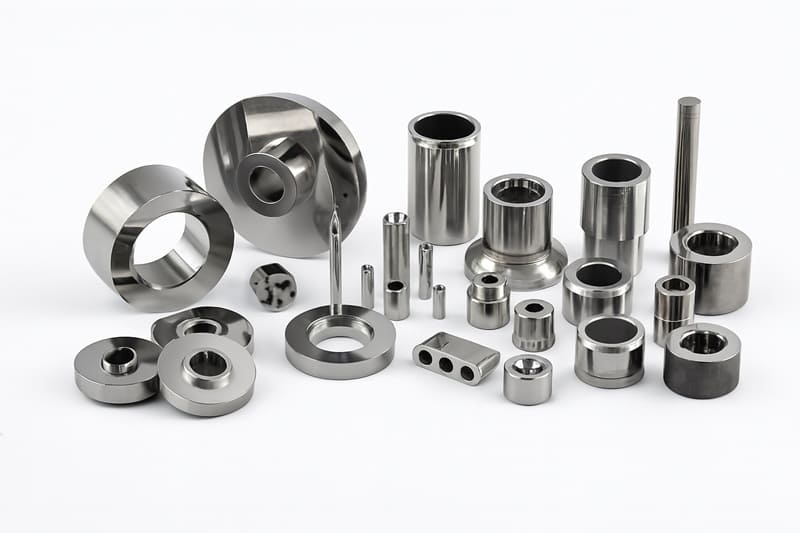

Molybdenum Tungsten Alloy Machining Service

Shanghai Yuepeng has advanced machining centers equipped with various high-precision processing equipment, enabling us to offer multiple machining services such as turning, milling, grinding, and drilling. Whether for large-scale production or customized small-batch orders, we guarantee high precision and performance to meet customer’s specific requirements. The following are methods we will use during processing:

  • Isostatic Pressing
  • Forging
  • Extrusion
  • Molding
  • Injection Molding
  • Rolling
  • Electrical Discharge Machining (EDM)
  • Milling
  • Turning

Molybdenum Tungsten Alloy Applications

  • Zinc Smelting: Molybdenum-tungsten alloy has good resistance to zinc leaching, and is commonly used in zinc temperature measuring tubes, zinc pump rotors, and other parts used in the zinc processing industry.
  • Glass Manufacturing: molybdenum-tungsten alloy can be used to manufacture stirrers.
  • Electronics and Optics: Molybdenum-tungsten alloys are used as electrodes or structural parts in electron tubes and thyristors.

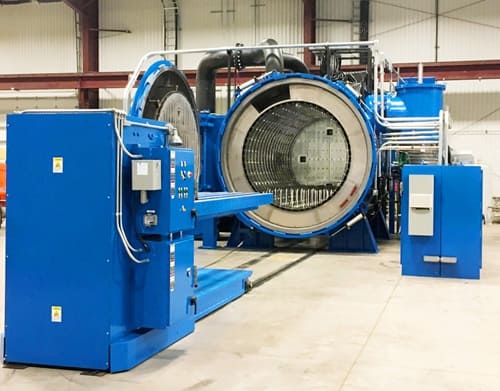

  • High-temperature Components: Molybdenum-tungsten alloys are also commonly used to manufacture electrodes for high-temperature furnaces, flow ports, and thimble components.
  • Defense and Aerospace

    • Molybdenum Tungsten Alloy Packaging

    The Molybdenum Tungsten Alloy products are carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

    Molybdenum Properties

    ItemValue
    Atomic number42
    Crystal structureBody centred cubic
    Electronic structureKr 4d⁵ 5s¹
    Valences shown2, 3, 4, 5, 6
    Atomic weight( amu )95.94
    Thermal neutron absorption cross-section( Barns )2.65
    Photo-electric work function( eV )4.2
    Natural isotope distribution( Mass No./% )95/ 15.9
    Natural isotope distribution( Mass No./% )96/ 16.7
    Natural isotope distribution( Mass No./% )98/ 24.1
    Natural isotope distribution( Mass No./% )97/ 9.6
    Natural isotope distribution( Mass No./% )92/ 14.8
    Natural isotope distribution( Mass No./% )94/ 9.3
    Natural isotope distribution( Mass No./% )100/ 9.6
    Atomic radius – Goldschmidt( nm )0.14
    Ionisation potential( No./eV )2/ 16.15
    Ionisation potential( No./eV )5/ 61.2
    Ionisation potential( No./eV )Jun-68
    Ionisation potential( No./eV )1/ 7.10
    Ionisation potential( No./eV )3/ 27.2
    Ionisation potential( No./eV )4/ 46.4
    ItemValue
    Material condition / TemperAnnealed (Soft)
    Material condition / TemperUn-annealed (Hard)
    Poisson’s ratio0.293
    Poisson’s ratio0.293
    Bulk modulus( GPa )261.2
    Bulk modulus( GPa )261.2
    Tensile modulus( GPa )324.8
    Tensile modulus( GPa )324.8
    Hardness – Vickers( kgf mm⁻² )250
    Hardness – Vickers( kgf mm⁻² )200
    Tensile strength( MPa )485-550
    Tensile strength( MPa )620-690
    Yield strength( MPa )550
    Yield strength( MPa )415-450
    ItemValue
    Electrical resistivity( µOhmcm )5.7@20@20°C
    Superconductivity critical temperature( K )0.915
    Temperature coefficient( K⁻¹ )0.00435@0-100°C
    Thermal emf against Pt (cold 0C – hot 100C)( mV )1.45
    ItemValue
    Boiling point( °C)4612
    Density( gcm⁻³ )10.22@20°C
    ItemValue
    Melting point( °C )2617
    Latent heat of evaporation( J g⁻¹ )6153
    Latent heat of fusion( J g⁻¹ )290
    Specific heat( J K⁻¹ kg⁻¹ )251@25°C
    Thermal conductivity( W m⁻¹ K⁻¹ )138@0-100°C
    Coefficient of thermal expansion( x10⁻⁶ K⁻¹ )5.1@0-100°C

    Download

    • Company Profile

    Get A Quote

    We will check and get back to you in 24 hours.

    To customize your molybdenum tungsten alloy products, please provide the following details:

    1. Alloy Composition: Specify the alloy composition and ratio.
    2. Dimensions ＆ Shape: Provide size and shape requirements.
    3. Tolerance ＆ Precision: Define acceptable tolerances.
    4. Surface Finish: Specify surface treatment (e.g., polished or coating).
    5. Quantity of the products you need
    6. Applications (We can also make recommendations based on your specific needs.)
    7. Alternatively, you can provide a drawing with your specifications.

    Once we have these details, we can provide you with a quote within 24 hours.

    We carry a wide variety of molybdenum and molybdenum alloy products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

    DFARS (Defense Federal Acquisition Regulation Supplement) compliance is primarily concerned with the sourcing of materials for defense-related applications in the United States. According to DFARS, certain materials used in defense must be sourced from the United States or qualifying countries.

    If you have specific molybdenum materials that are subject to DFARS, please let us know in advance and we will confirm.

    At Shanghai Yuepeng Tech, we take this responsibility seriously. We adhere to all applicable laws and regulations, including Section 1502 of the Dodd-Frank Act. Our company operates with a strict code of ethics and is committed to only partnering with suppliers who share our dedication to responsible sourcing. We support the initiatives and programs aimed at promoting “conflict-free” supply chains and work diligently to ensure that our products meet these standards.

    Molybdenum tungsten alloy is a solid-solution alloy composed of molybdenum and tungsten, both refractory metals. It combines molybdenum’s good ductility and workability with tungsten’s extremely high melting point and density, with properties varying based on tungsten content.

    The main advantage is better room-temperature toughness and machinability. Pure tungsten is very brittle and difficult to machine, while molybdenum tungsten alloys (especially with medium to low tungsten content) are easier to cut, forge, and work with, reducing manufacturing cost and difficulty.

    In a vacuum or inert atmosphere, it can be used at temperatures above 1800°C, depending on the tungsten content. However, in air, it oxidizes rapidly at high temperatures, limiting its use in oxidizing environments to typically below 400-500°C.

    Shanghai Yuepeng Tech, established in 2022 in Shanghai, China, is a specialized supplier and manufacturer of molybdenum and molybdenum alloys. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.

    Contact Form Demo

    类似文章

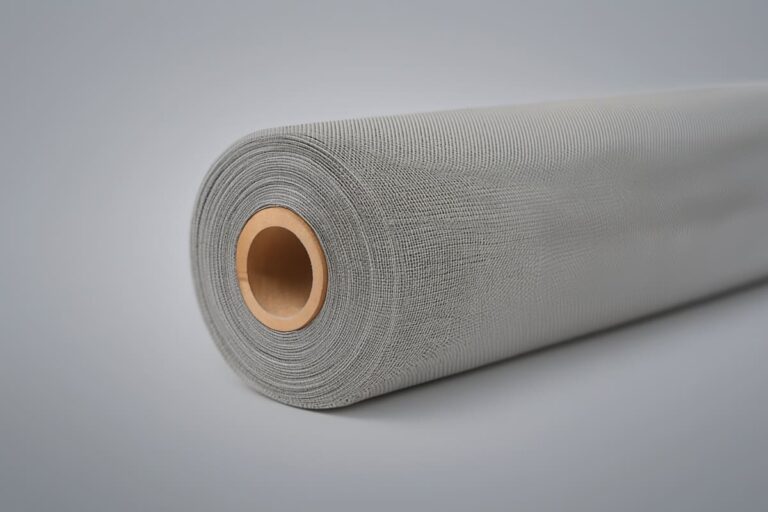

    • Molybdenum Mesh

      Molybdenum Mesh Molybdenum Mesh is made of high-purity molybdenum wire material, exhibitin…

    • Tungsten Plate/Sheet/Disc

      Tungsten Plate/Sheet/Disc Tungsten Plate/Sheet/Disc is made from high-purity tungsten material with …

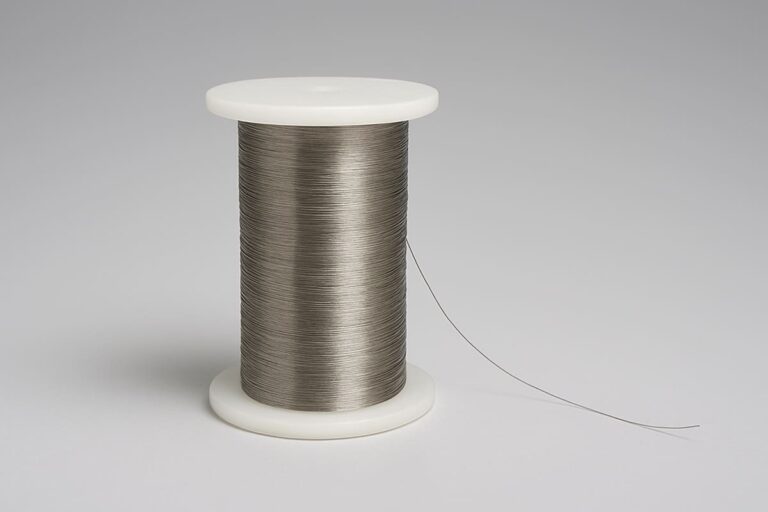

    • Tungsten Wire

      Tungsten Wire Tungsten Wire offers an exceptionally high melting point, excellent high-temperature r…

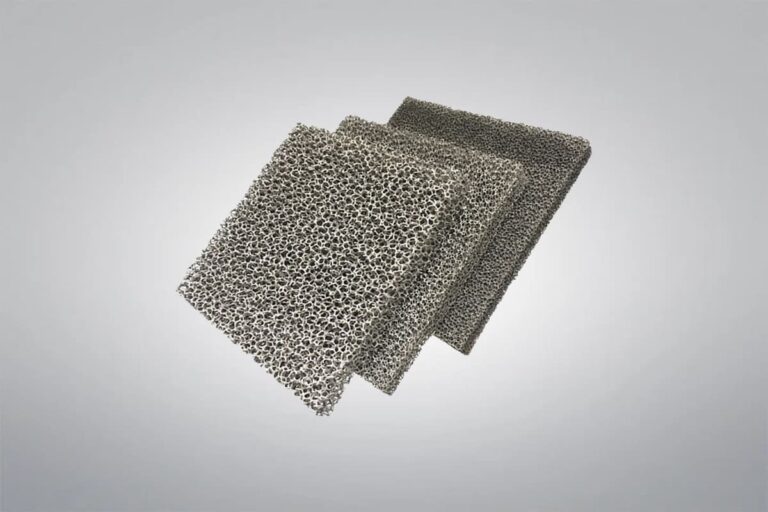

    • Tantalum Foam

      Tantalum Foam Tantalum Foam is a porous 3-dimensional structure material, made of high-purity non-to…

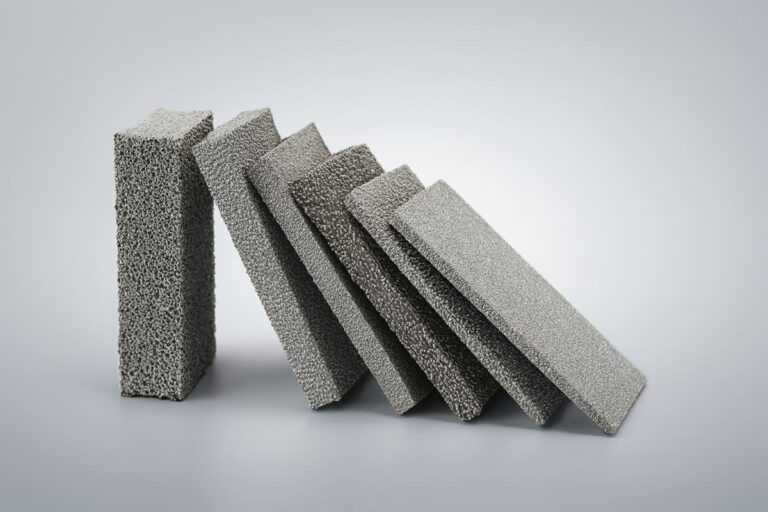

    • Molybdenum Foam
