Niobium Ingot

niobium ingot

Niobium Ingot

  • Custom sizes and standard sizes in stock
  • Quick Lead Time
  • Competitive Price

Niobium Ingot is made of high purity niobium metal material with good corrosion resistance, high temperature resistance and good strength, which is the main raw material for making various niobium processed products. As a leading supplier and manufacturer of premium niobium products, Shanghai Yuepeng utilizes advanced machining centers to produce high-precision niobium and niobium alloy wire for a wide range of applications.

Get a Quote

Niobium Ingot Data Sheet

Reference:HMNB1113
Dimensions:Diameter: 20-295 mm
Length: <1600 mm
Standard:ASTM B392
Material:R04200, R04210, R04251, R04261
Shape:Rectangular, Cylinder, or customized
Purity:99.5%-99.99%
Density:8.57 g/cm3
Temper:Annealed or Unannealed

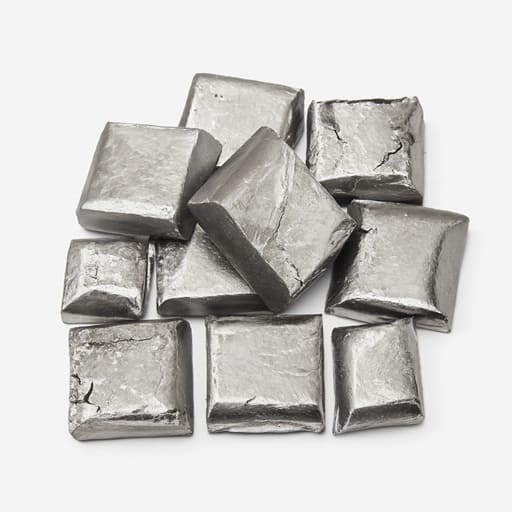

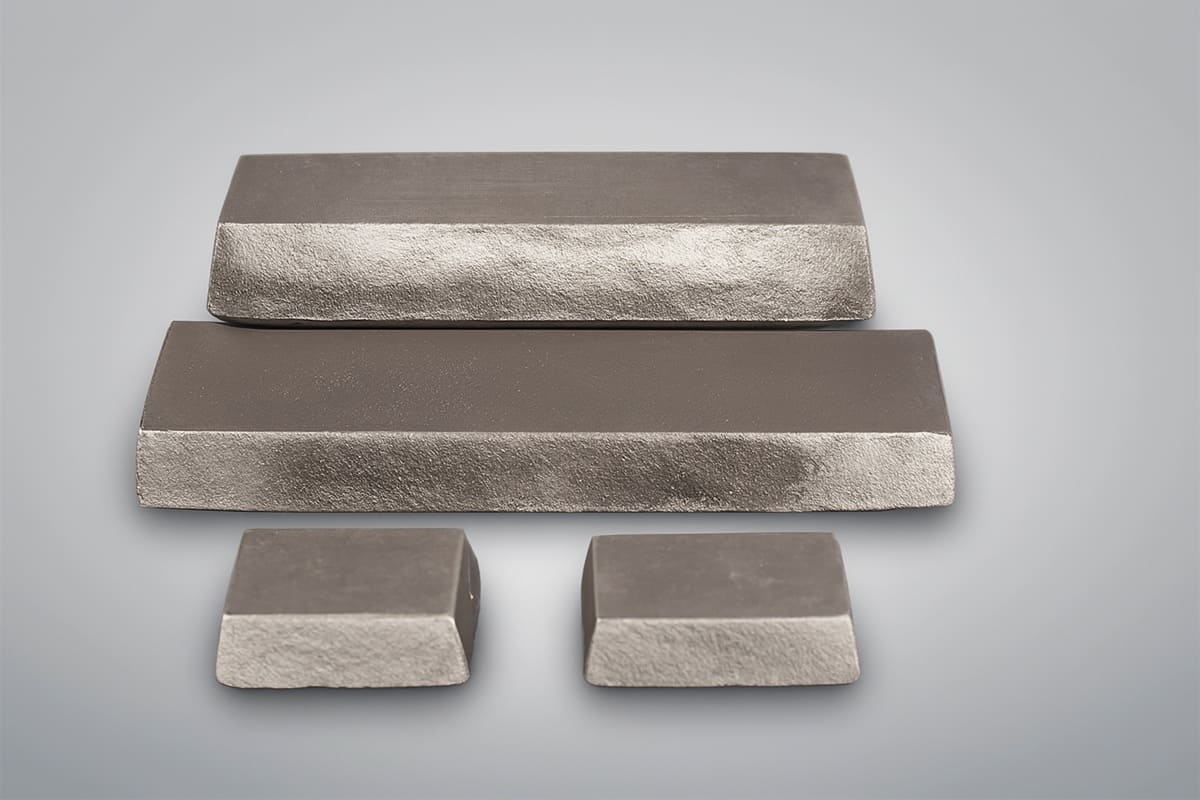

Niobium Ingot

Niobium is a rare, silvery-gray transition metal with excellent corrosion resistance and high strength at high temperatures. Niobium Ingots are made of high-purity niobium metal material with good strength, impact toughness, and good machinability. Shanghai Yuepeng can customize niobium and niobium alloy ingots to meet specific customer requirements, offering a wide range of specifications at competitive prices.

  • niobium ingot

Niobium Ingot Material Chemical Composition

MaterialMain Element (%)Impurities (≤%)
NbFeSiNiWMoTiTaZrHfOCHN
RO4200Bal.0.00400.00400.00200.00500.00500.00200.07000.02000.02000.01500.00400.00150.0030
RO4210Bal.0.01000.01000.00500.02000.01000.00400.10000.02000.02000.02000.01000.00150.0100
RO4251Bal.0.00500.00500.00500.03000.01000.02000.10000.8-1.20.02000.01500.01000.00150.0100
RO4261Bal.0.05000.00500.00500.05000.05000.03000.50000.8-1.20.02000.02500.01000.00150.0100

Niobium Ingot Mechanical Properties

GradeTensile strength
psi(MPa), ≥		Yield strength
δ0.2, psi (MPa),≥		Elongation in 1″/2″ gage length, %, ≥
>=0.010<0.010
R04200, R0421018000 (125)10500 (73)2015
R04251, R0426128000 (195)18000 (125)2015

Niobium Ingot Properties

  • High melting point
  • Excellent corrosion resistance
  • Good electrical conductivity
  • High strength and toughness
  • Low thermal expansion
  • Superconductivity
  • Chemical stability

Niobium Ingot Applications

Niobium ingots possess exceptional properties and are widely used in the following areas:

  • Aerospace
  • Electronics
  • Superconducting Materials
  • Medical Devices
  • Defense and Aerospace
  • Medical Devices

    • Niobium Ingot Packaging

    The Niobium Ingot is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

    Niobium Properties

    ItemValue
    Atomic number41
    Crystal structureBody centred cubic
    Electronic structureKr 4d⁴ 5s¹
    Valences shown2, 3, 4, 5
    Atomic weight( amu )92.9064
    Thermal neutron absorption cross-section( Barns )1.15
    Photo-electric work function( eV )4.3
    Atomic radius – Goldschmidt( nm )0.147
    Ionisation potential( No./eV )3/ 25.0
    Ionisation potential( No./eV )2/ 14.3
    Ionisation potential( No./eV )6/ 103
    Ionisation potential( No./eV )1/ 6.88
    Ionisation potential( No./eV )4/ 38.3
    Ionisation potential( No./eV )5/ 50.5
    ItemValue
    Material condition / TemperAnnealed (Soft)
    Material condition / TemperUn-annealed (Hard)
    Poisson’s ratio0.397
    Poisson’s ratio0.397
    Bulk modulus( GPa )170.3
    Bulk modulus( GPa )170.3
    Tensile modulus( GPa )104.9
    Tensile modulus( GPa )104.9
    Izod toughness( J m⁻¹ )10-120
    Hardness – Vickers( kgf mm⁻² )115
    Hardness – Vickers( kgf mm⁻² )160
    Tensile strength( MPa )330
    Tensile strength( MPa )585
    Yield strength( MPa )550
    Yield strength( MPa )240
    ItemValue
    Electrical resistivity( µOhmcm )16@20@20°C
    Superconductivity critical temperature( K )9.25
    Temperature coefficient( K⁻¹ )0.0026@0-100°C
    ItemValue
    Boiling point( °C )4742
    Density( gcm⁻³ )8.57@20°C
    ItemValue
    Melting point( °C )2468
    Latent heat of evaporation( J g⁻¹ )7360
    Latent heat of fusion( J g⁻¹ )290
    Specific heat( J K⁻¹ kg⁻¹ )268@25°C
    Thermal conductivity( W m⁻¹ K⁻¹ )53.7@0-100°C
    Coefficient of thermal expansion( x10⁻⁶ K⁻¹ )7.2@0-100°C

    Download

    • Company Profile

    Get A Quote

    We will check and get back to you in 24 hours.

    To customize your niobium ingot, please provide the following details:

    1. Dimensions (Specify the length, width, height, or diameter of the ingot)
    2. Shape (Rectangular ingot, cylinder, or other custom shapes.)
    3. Purity (Specify the purity of material required.)
    4. Quantity of the products you need
    5. Alternatively, you can provide a drawing with your specifications.

    Once we have these details, we can provide you with a quote within 24 hours.

    We carry a wide variety of niobium and niobium alloy products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

    DFARS (Defense Federal Acquisition Regulation Supplement) compliance is primarily concerned with the sourcing of materials for defense-related applications in the United States. According to DFARS, certain materials used in defense must be sourced from the United States or qualifying countries.

    If you have specific niobium materials that are subject to DFARS, please let us know in advance and we will confirm.

    At Shanghai Yuepeng Tech, we take this responsibility seriously. We adhere to all applicable laws and regulations, including Section 1502 of the Dodd-Frank Act. Our company operates with a strict code of ethics and is committed to only partnering with suppliers who share our dedication to responsible sourcing. We support the initiatives and programs aimed at promoting “conflict-free” supply chains and work diligently to ensure that our products meet these standards.

    A niobium ingot is a rough-cast block of niobium metal obtained through smelting and casting. It is the starting point and basic form for niobium material processing. It sits in the middle of the supply chain, produced from niobium concentrate and used for further rolling, forging, or processing into various finished products (e.g., sheet, bar, wire, tube).

    Yes. Many metallurgical suppliers offer customization, casting ingots to various weights (from a few kg to several hundred kg), cross-sectional shapes (round, rectangular), and dimensions based on the customer’s subsequent processing needs.

    Shanghai Yuepeng Tech, established in 2022 in Shanghai, China, is a specialized supplier and manufacturer of niobium and niobium alloys. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.

    Contact Form Demo

    类似文章

    • Niobium Crucible

      Niobium Crucible Niobium Crucible is made of high-purity niobium metal, highly resistant to high tem…

    • Tungsten Silver Alloy

      Tungsten Silver Alloy Tungsten Silver Alloy is composed of tungsten and silver and made through powd…

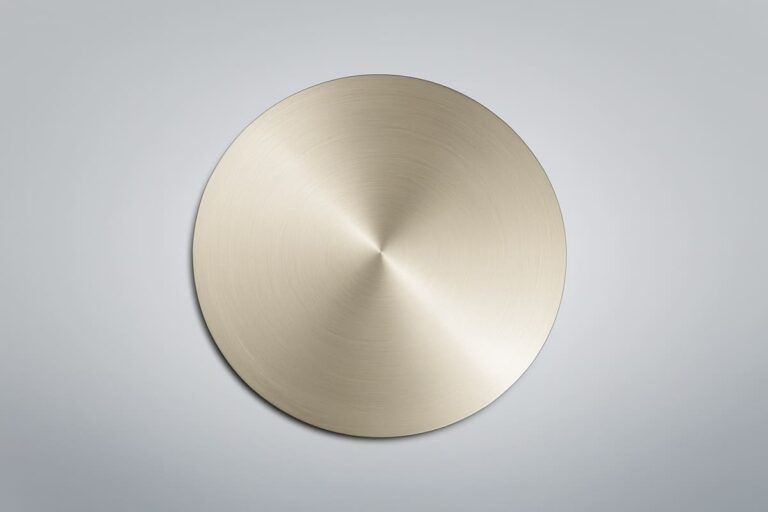

    • Niobium Sputtering Target

      Niobium Sputtering Target Niobium Sputtering Target is made of high-purity niobium metal material, p…

    • Tungsten Tube/Pipe

      Tungsten Tube/Pipe Tungsten Tube/Pipe is made from high-purity tungsten material through powder…

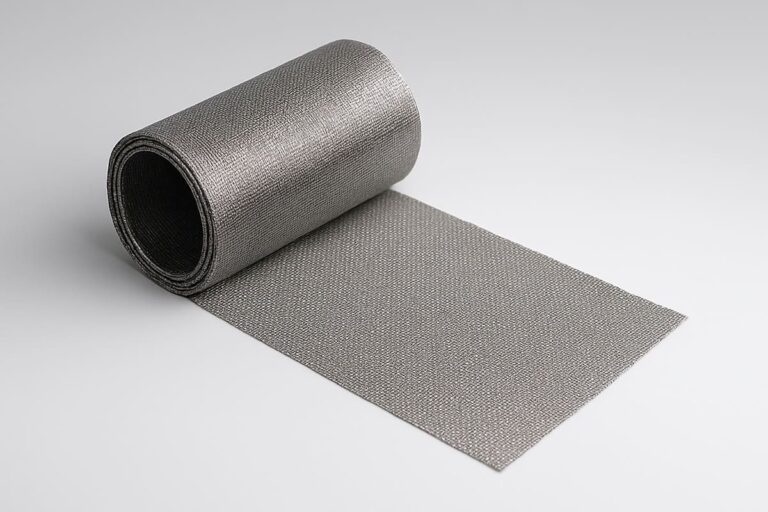

    • Tungsten Mesh
