Niobium Plate/Sheet/Disc

Niobium Plate/Sheet/Disc Data Sheet

Reference:	HMNB1101
Dimensions:	Plate: 0.5-10 mm Thickness × 50-1000 mm Width × 50-2000 mm Length Sheet: 0.1-0.5 mm Thickness × 30-600 mm Width × 30-2000 mm Length Disc: 0.0254-6.35 mm Thickness × 12.7-203.2 mm Diameter
Standard:	ASTM B392, ASTM B654/B654M
Material:	R04200, R04210, R04251, R04261, R04295
Surface:	Polished, Vannum Annealed, Cold-rolled Bringht
Purity:	99.5%-99.99%
Temper:	Polished, Vannum Annealed, Cold-rolled Bright

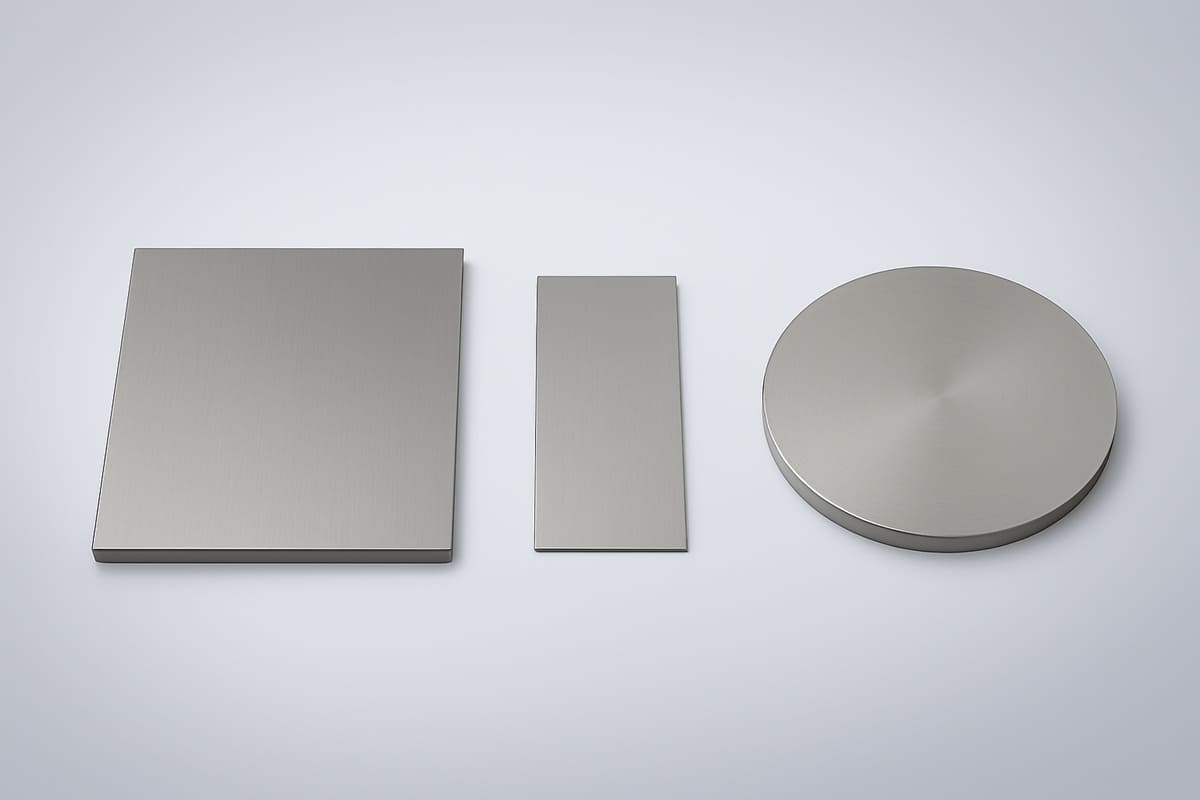

Niobium Plate And Niobium Sheet

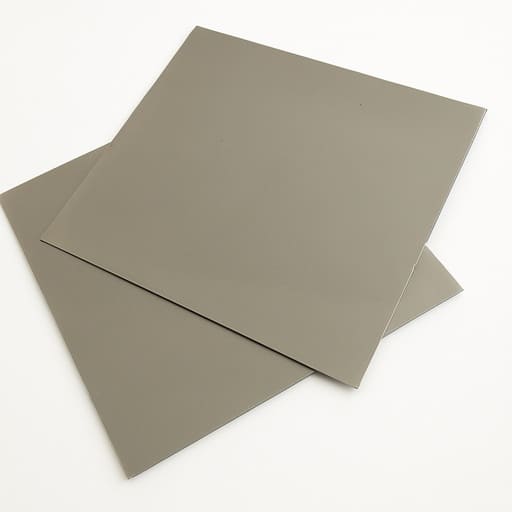

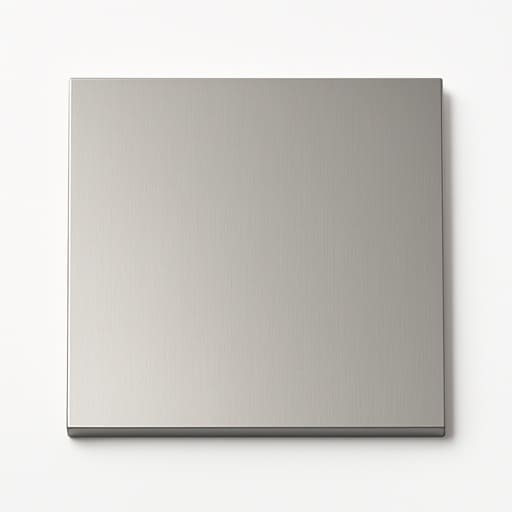

Niobium Plate and Niobium Sheet are manufactured through rolling high-purity niobium metal, which exhibits excellent corrosion resistance and high strength at high temperatures. They are widely used in aerospace, nuclear energy, superconducting technology, and the chemical industry. Shanghai Yuepeng can supply high-quality niobium plates and sheets with a wide range of specifications. The customized solutions are available according to specific requirements.

Niobium Plate and Niobium Sheet Specifications

Type	Thickness (mm)	Width (mm)	Length (mm)
Sheet	0.1-0.5	30-600	30-2000
Plate	0.5-10	50-1000	50-2000

Niobium Plate and Niobium Sheet Dimension Tolerances

Item	Thickness Tolerance + (mm)	Thickness Tolerance – (mm)	Width Tolerance + (mm)	Width Tolerance – (mm)	Length Tolerance + (mm)	Length Tolerance – (mm)
Thickness (mm)	W<152.4	152.4≤W<609.6	W<152.4	152.4≤W<609.6	L≤304.8	L>304.8
0.13 ~ 0.254	0.013	0.025	0.30	–	1.59	2.38
0.254 ~ 0.381	0.018	0.025	0.38	0.38	1.59	2.38
0.381 ~ 0.508	0.020	0.038	0.38	0.38	1.59	2.38
0.508 ~ 0.762	0.038	0.064	0.51	0.64	1.59	2.38
0.762 ~ 1.524	0.064	0.089	0.64	0.76	1.59	2.38
1.524 ~ 2.286	0.102	0.127	0.64	0.89	1.59	2.38
2.286 ~ 3.175	0.150	0.180	–	–	1.59	2.38
3.175 ~ 4.75	0.250	0.250	–	–	1.59	2.38
4.75 ~ 6.35	0.380	0.380	–	–	3.18	3.97
6.35 ~ 7.925	0.510	0.510	–	–	3.18	3.97
7.925 ~ 9.52	0.640	0.640	–	–	4.76	5.56

Niobium Disc

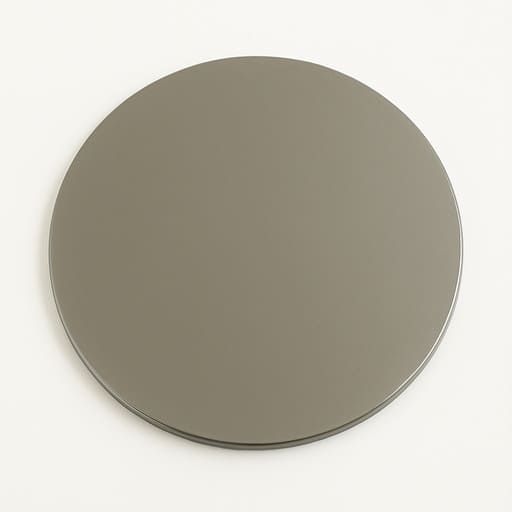

Niobium Disc is cut from sheet and plate, and the sizes range from 1″~8″ in diameter and 0.08″~1/2″ in thickness. For custom sizes or processing, please contact us with your dimension specifications or drawings. Shanghai Yuepeng can offer customized solutions to meet your requirements.

Niobium Plate/Sheet/Disc Material Chemical Composition

Material	Main Element (%)	Impurities (≤%)
	Nb	Fe	Si	Ni	W	Mo	Ti	Ta	Zr	Hf	O	C	H	N
RO4200	Bal.	0.0040	0.0040	0.0020	0.0050	0.0050	0.0020	0.0700	0.0200	0.0200	0.0150	0.0040	0.0015	0.0030
RO4210	Bal.	0.0100	0.0100	0.0050	0.0200	0.0100	0.0040	0.1000	0.0200	0.0200	0.0200	0.0100	0.0015	0.0100
RO4251	Bal.	0.0050	0.0050	0.0050	0.0300	0.0100	0.0200	0.1000	0.8-1.2	0.0200	0.0150	0.0100	0.0015	0.0100
RO4261	Bal.	0.0500	0.0050	0.0050	0.0500	0.0500	0.0300	0.5000	0.8-1.2	0.0200	0.0250	0.0100	0.0015	0.0100
R04220	Bal.	0.0050	0.0050	0.0030	0.0070	—	0.0050	0.1000	0.0100	—	0.0040	0.0030	0.0005	0.0030
RO4295	Bal.	—	—	—	0.5000	—	0.7-1.3	0.5000	0.700	9-11	0.0250	0.0150	0.0015	0.0100

Niobium Plate/Sheet/Disc Mechanical Properties

Mechanical Properties Of Annealed Condition

Grade	Tensile strength psi(MPa), ≥	Yield strength δ0.2, psi (MPa),≥	Elongation in 1″/2″ gage length, %, ≥
			>=0.010	<0.010
R04200, R04210	18000 (125)	10500 (73)	20	15
R04251, R04261	28000 (195)	18000 (125)	20	15
R04220 (RRR Grade)	14000 (95)	7200 (50)	30	30

Mechanical Properties Of ASTM B654/B654M Condition

Item	Tensile strength psi(MPa), ≥	Yield strength δ0.2, psi (MPa),≥	Elongation in 1″ gage length, %, ≥
Thickness ≤0.050″ (1.27 mm) Room temperature	56000 (385)	40000 (275)	20
Thickness ≤0.050″ (1.27 mm) 2000±25 °F (1100±15 ℃)	21000(145)	16000 (110)	20
Thickness ≥0.050″ (1.27 mm) Room temperature	54000 (370)	38000 (260)	20
Thickness ≥0.050″ (1.27 mm) 2000±25 °F (1100± 15℃)	21000 (145)	16000 (110)	20

Niobium Plate/Sheet/Disc Production Process

• Raw Material: Select high-purity niobium powder.
• Powder Metallurgy: Mix with binder and compact into a green billet.
• Sintering: High-temperature sintering to remove the binder and increase density.
• Heat Treatment: Anneal to relieve stress and enhance properties.
• Surface Treatment: Clean and polish the surface.
• Cutting & Customization: Cut or customize according to requirements.

Niobium Plate/Sheet/Disc Surface Finish

Depending on the intended applications, niobium plate, sheet, and disc have three main surface finishes as follows:

• Black: The surface is “as swaged” or “as drawn”, retaining a coating of processing lubricants and oxides.
• Cleaned: The surface is chemically cleaned to remove all lubricants and oxides.

Niobium Plate/Sheet/Disc Applications

• Superconducting Materials: Niobium plates, sheets, and discs are widely used in the field of superconductivity and are commonly employed to produce superconducting cables, superconducting magnets, and other devices, particularly in particle accelerators and nuclear magnetic resonance (NMR) instruments.
• Nuclear Industry: Niobium plates, sheets, and discs are commonly used as structural materials in nuclear reactors and nuclear fuel jacket materials due to their low neutron capture cross-section and high corrosion resistance.
• Aerospace: Due to their excellent high-temperature strength and heat resistance, Niobium plates, sheets, and discs are often used to manufacture high-temperature components, such as engine components for rockets and airplanes.
• Electronic Components: Niobium plates, sheets, and discs are utilized as acid- and liquid-metal-corrosion-resistant materials in the manufacturing of boilers, heaters, and other equipment.
• Chemical Industry: Niobium plates, sheets, and discs are used as acid and liquid-metal-corrosion-resistant materials for boilers, heaters, and other equipment.

Niobium Plate/Sheet/Disc Packaging

The Niobium Plate/Sheet/Disc is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
