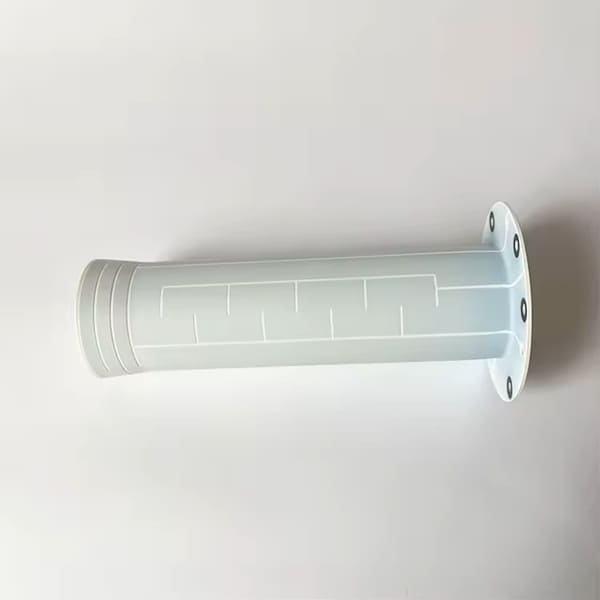

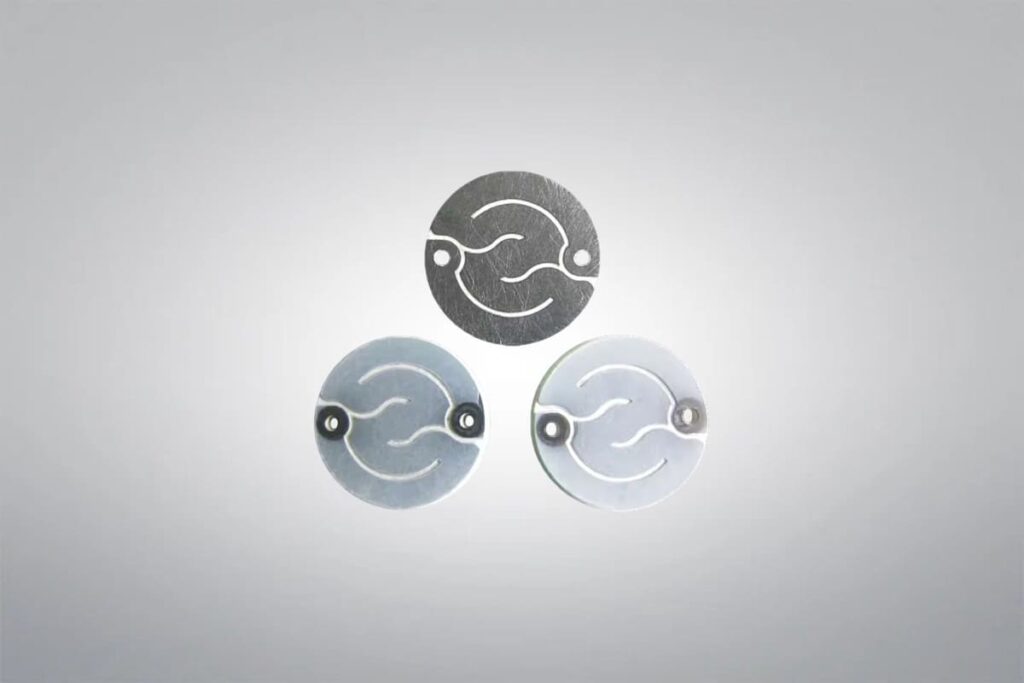

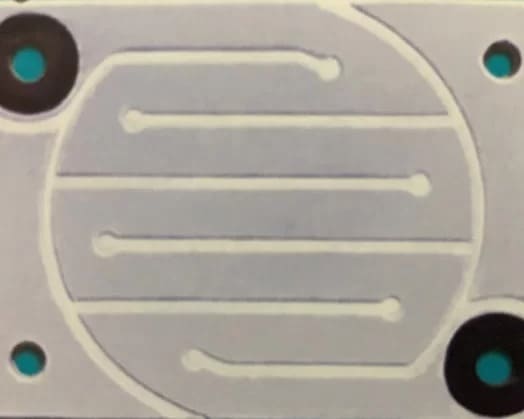

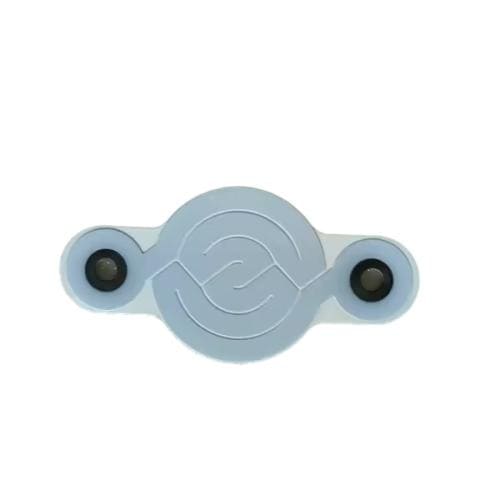

Pyrolytic Boron Nitride Heater
Pyrolytic Boron Nitride Heater
Material: PBN-PG-PBN
Diameter: 0.5-5 inch
- Custom sizes and standard sizes in stock
- Quick Lead Time
- Competitive Price
Pyrolytic Boron Nitride Heater is a high-performance heating element for high-temperature, high-vacuum, and high-purity processes. Constructed with a pyrolytic boron nitride (PBN) substrate and apyrolytic graphite (PG) conductive heating layer, it is produced via chemical vapor deposition (CVD). As a leading supplier and manufacturer of premium pyrolytic boron nitride products, Shanghai Yuepeng utilizes advanced machining centers to produce pyrolytic boron nitride heaters for a wide range of applications.
Pyrolytic Boron Nitride Heater Data Sheet
| Reference: | PBN1277 |
| Material: | PBN-PG-PBN |
| Purity: | 99.99%-99.999% |
| Diameter: | 0.5-5 inch |
| Density: | 1.95-2.20 g/cm3 |
| Production Method: | CVD |
Pyrolytic Boron Nitride Heater Description
Pyrolytic Boron Nitride Heater combines three layers of ultra-high purity ceramics (PBN-PG-PBN) to produce an advanced ceramic heating element system. Pyrolytic Boron Nitride (PBN) serves as the insulating substrate, while Pyrolytic Graphite (PG) acts as the conductive heating layer. It is manufactured through high-temperature chemical vapor deposition (CVD) technology. It features excellent thermal uniformity, thermal shock resistance, and chemical stability. It is capable of reaching temperatures above 1600 ℃ in minimal time. Shanghai Yuepeng can provide customized solutions for dimension, shape, operating temperature, current, and voltage specifications to meet diverse industrial and research requirements.
Pyrolytic Boron Nitride Heater Specifications
| Diameter: | 0.5 -5 inch |
| Power output: | 150-3000W |
| Max operating temperature: | PBN: 1700 ℃, PG: 1600 ℃ |
Pyrolytic Boron Nitride Heater Advantages
- Excellent high-temperature performance: Operates reliably above 1600 °C in vacuum or inert atmospheres.
- High purity and contamination-free: Maintains ultra-clean operation with no gas release, ensuring process stability.
- Thermal uniformity: Provides consistent temperature distribution, reducing variations from thermal gradients.
- Thermal shock resistance: Withstands rapid heating and cooling cycles without cracking or structural damage.
- Chemical stability: Remains inert to nearly all metals, liquids, and gases, even at elevated temperatures.
- Fast response time: Reaches target temperature quickly, improving process efficiency.

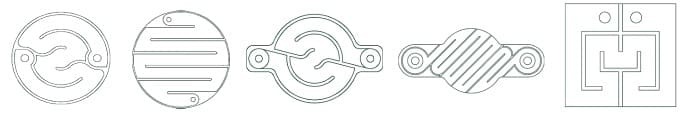

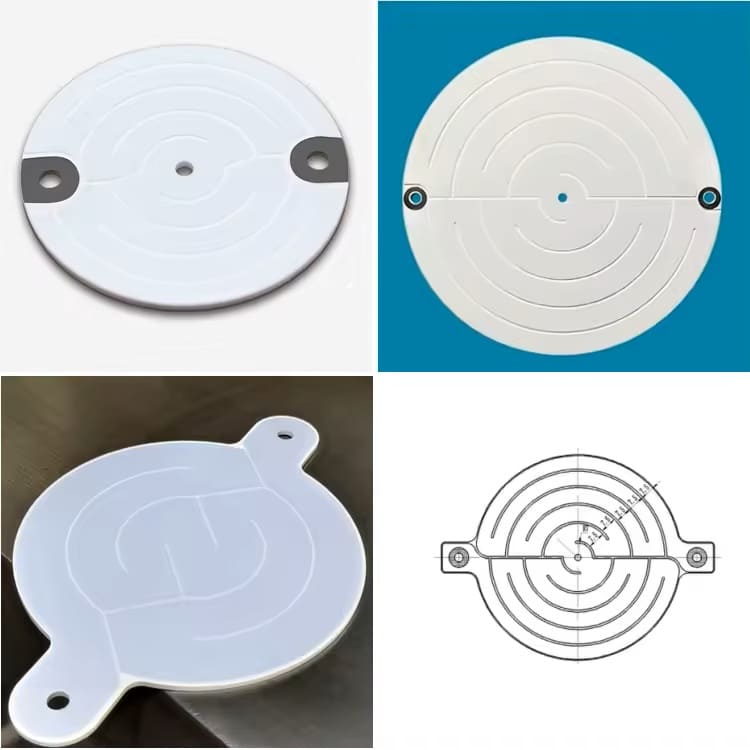

- Highly customizable: Can be designed in diverse shapes, sizes, and thermal zones to meet specific application needs.
Pyrolytic Boron Nitride Heater Applications
- Semiconductor processing: Used in MOCVD, epitaxy, and diffusion systems where high-temperature uniformity and purity are critical.
- Crystal growth: Supports heating environments for materials like GaAs, InP, or sapphire in controlled atmospheres.
- Vacuum and inert gas furnaces: Provide efficient heating for high-temperature processes without contamination.
- Material research: Applied in laboratories for high-temperature testing of ceramics, alloys, and advanced materials.
- Optical and electronic industries: Enables stable heating for thin-film deposition, annealing, and component manufacturing.
Crystal growth
Material research
Optical and electronic industries
Semiconductor processing

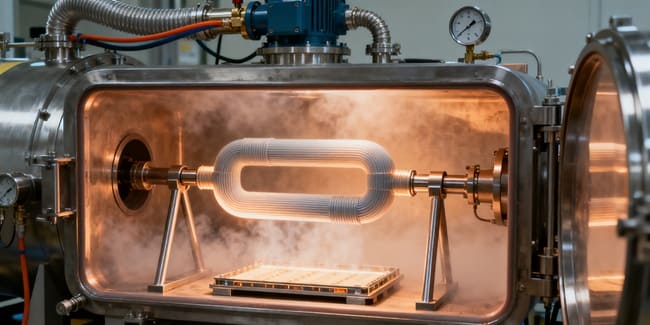

Vacuum and inert gas furnaces
Pyrolytic Boron Nitride Material Properties
Pyrolytic Boron Nitride Machining
Shanghai Yuepeng is equipped with multiple CNC lathes and CNC milling machines, and it is backed by extensive machining experience. We offer customized pyrolytic boron nitride ceramic products and profiles with extremely tight tolerances, tailored to customer requirements. During the machining process, the following precautions should be observed:
- Pyrolytic boron nitride ceramic materials can be machined using standard high-speed steel cutting tools. For harder and composite materials, carbide or diamond tools are recommended.
- Grinding operations can be performed as needed, and standard taps and dies can be used to machine threads.
- The machining process should always be kept dry, with no need for cutting oils or coolants.
- Cutting tools should be sharp and clean, and tools with negative rake angles should not be used.
- Care should be taken when clamping and securing materials to avoid applying excessive pressure. Climb milling techniques should be used to prevent edge and corner chipping.
Pyrolytic Boron Nitride Packaging
Pyrolytic Boron Nitride Ceramic products are carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
