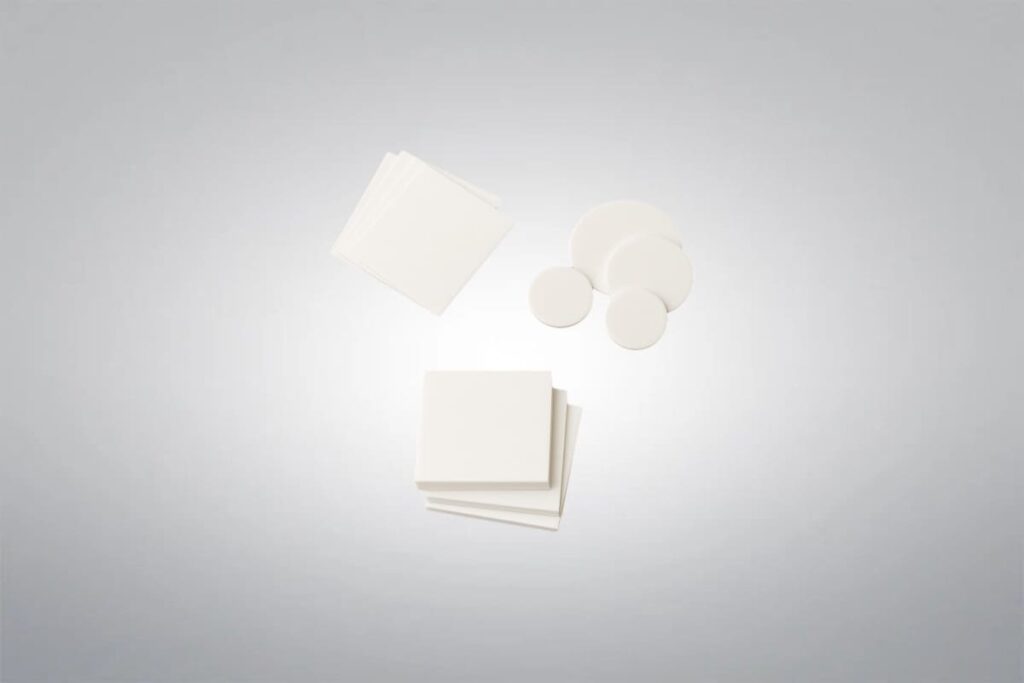

Pyrolytic Boron Nitride Plate/Sheet/Disc
Pyrolytic Boron Nitride Plate/Sheet/Disc
Purity: 99.99%-99.999%
- Custom sizes and standard sizes in stock
- Quick Lead Time
- Competitive Price
Pyrolytic Boron Nitride Plate/Sheet/Disc is a high-performance ceramic component made with ultra-high purity and excellent high-temperature insulation properties. It is commonly used in semiconductor manufacturing, high-temperature equipment, aerospace thermal management, optical substrates, and other scientific research. As a leading supplier and manufacturer of premium pyrolytic boron nitride products, Shanghai Yuepeng utilizes advanced machining centers to produce pyrolytic boron nitride plates, sheets, and discs with various specifications and competitive prices for a wide range of applications.
Pyrolytic Boron Nitride Plate/Sheet/Disc Data Sheet
| Purity: | 99.99%-99.999% |
| Color: | White |
| Density: | 1.95-2.20 g/cm3 |
| Production Method: | CVD |
Pyrolytic Boron Nitride Plate/Sheet/Disc Description
Pyrolytic Boron Nitride Plate/Sheet/Disc is a high-purity and high-performance ceramic material. Unlike conventional hot-pressed boron nitride, it is produced through chemical vapor deposition (CVD) under vacuum conditions, using ammonia and boron halides without the need for traditional hot-press sintering or sintering agents. It offers ultra-high purity (up to 99.999%), exceptional high-temperature resistance (up to 2000℃), corrosion resistance, thermal conductivity, and electrical insulation. Shanghai Yuepeng can supply customized solutions for length, width, diameter, thickness, and surface finishes to meet specific requirements.

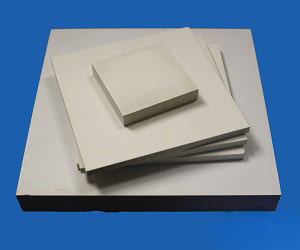

Pyrolytic Boron Nitride Plate

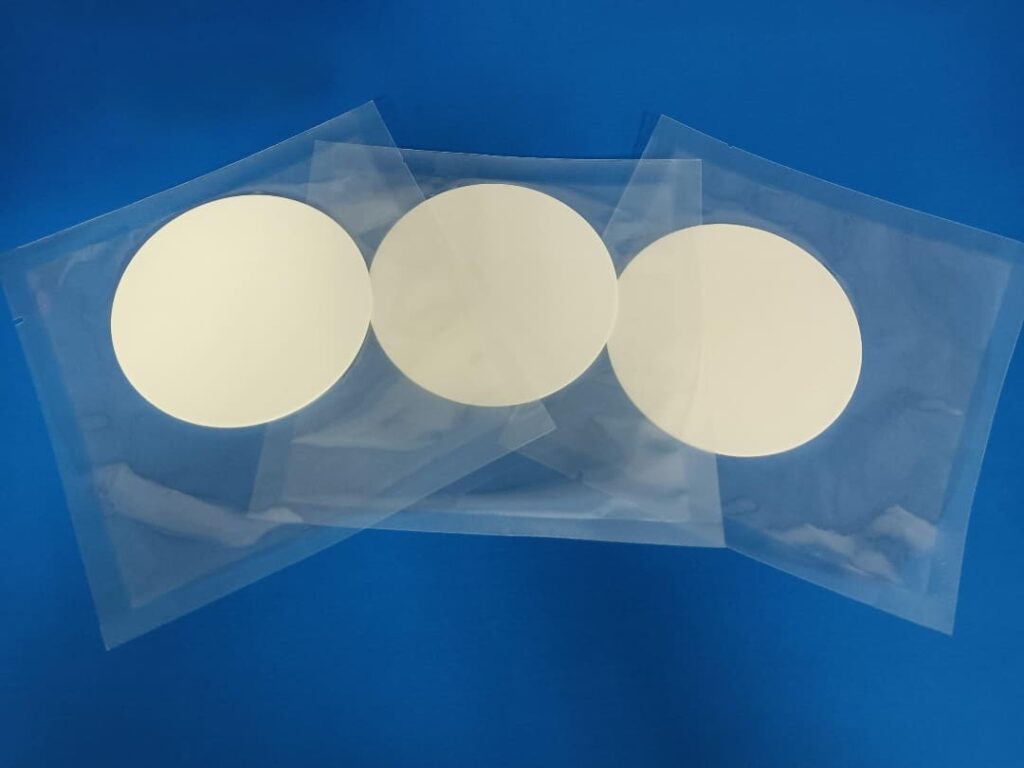

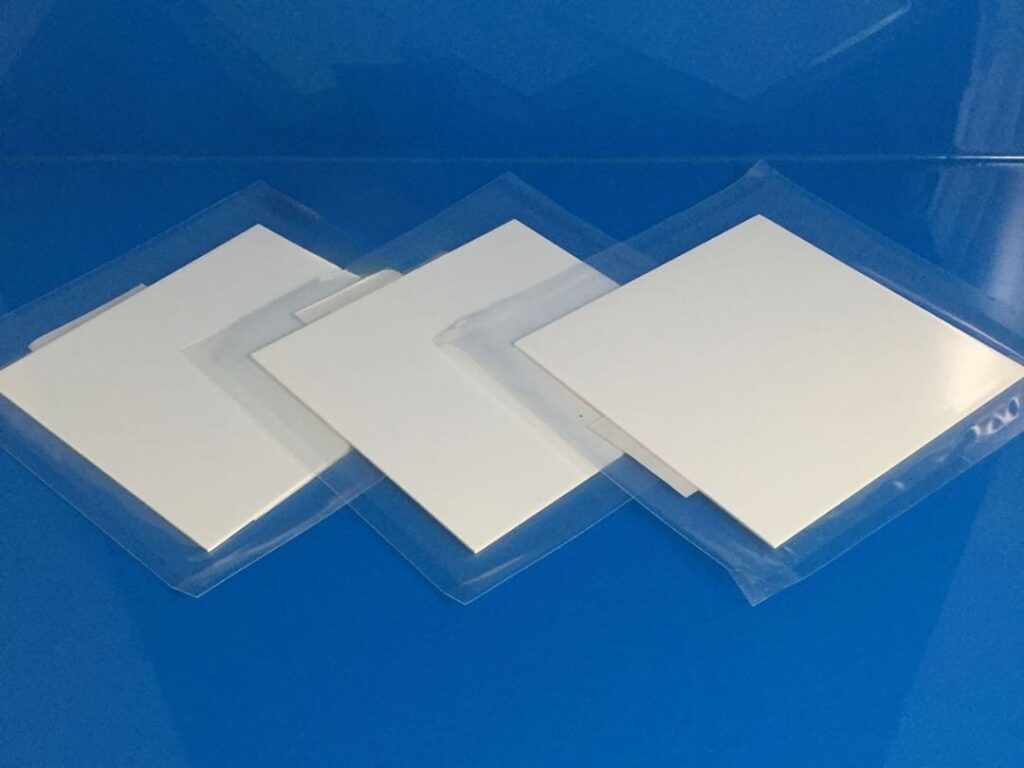

Pyrolytic Boron Nitride sheet- Pyrolytic Boron Nitride Disc

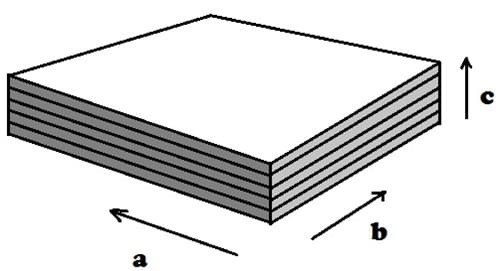

Pyrolytic Boron Nitride Plate/Sheet Specifications
| Item | Value | |
| Lattice Constant | a:2.504×10-10 μm c:6.692×10-10 μm | |
| Density | 2.0-2.19 g/cm3 | |
| Resistivity | 3.11×1011 Ω·cm | |
| Tensile Strength (ab) | 153.86 N/mm2 | |
| Bend Strength | c | N/mm2 |
| ab | 197.76 N/mm2 | |
| Elastic Modulus | 235690 N/mm2 | |
| Thermal Conductivity | (200°С) | W/m·k |
| (900°С) | “a” direction:43.70 W/m·k “c” direction:2.80 W/m·k | |
| Dielectric Strength (at room temperature) | 56 KV/mm | |
Pyrolytic Boron Nitride Plate/Sheet/Disc Advantages
- Non-toxic, odorless.
- High purity, exceeding 99.999%.
- Do not react with acids, alkalis, salts, or organic reagents at room temperature; it slightly corrodes in molten salt or alkali solutions but is resistant to corrosion by most acids at high temperatures.
- Do not react with most molten metals, semiconductors, or their compounds.
- Exhibits good oxidation resistance below 1000°C.
- Excellent thermal shock resistance, with no cracks observed when immersed in water at 2000°C.
- High operating temperature with no sublimation point; decomposes directly into B and N above 3000°C.
- High electrical resistance and good electrical insulation properties.
- Smooth surface with no pores, does not wet most semiconductor melts.
- High flexural strength
- Easy to process with high precision
Pyrolytic Boron Nitride Plate/Sheet/Disc Applications
- High-Temperature Furnace Linings: PBN plates and sheets provide non-reactive, thermally stable linings for high-temperature furnaces, protecting equipment and ensuring consistent thermal performance.
- Crystal Growth Substrates: Used as substrates for growing single crystals, such as sapphire and silicon carbide, PBN ensures minimal contamination and excellent thermal stability during the process.
- Chemical Processing: PBN discs and sheets are ideal for handling corrosive chemicals and molten salts due to their chemical inertness and resistance to aggressive environments.
- Vacuum and High-Purity Environments: PBN plates maintain ultra-high purity conditions in vacuum chambers, semiconductor processing, and laboratory experiments, thanks to their low outgassing properties.
- Thermal Management Components: PBN sheets and discs serve as heat spreaders or insulating layers in high-temperature applications, combining high thermal conductivity with electrical insulation.
Crystal growth
Semiconductor processing- High-Temperature Furnaces
Optoelectronics

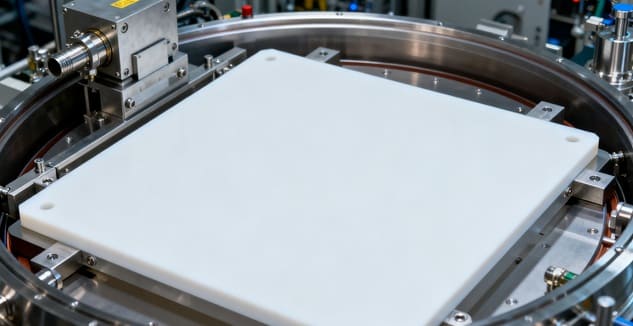

Vacuum and High-Purity Environments
Pyrolytic Boron Nitride Material Properties
Pyrolytic Boron Nitride Machining
Shanghai Yuepeng is equipped with multiple CNC lathes and CNC milling machines, and it is backed by extensive machining experience. We offer customized pyrolytic boron nitride ceramic products and profiles with extremely tight tolerances, tailored to customer requirements. During the machining process, the following precautions should be observed:
- Pyrolytic boron nitride ceramic materials can be machined using standard high-speed steel cutting tools. For harder and composite materials, carbide or diamond tools are recommended.
- Grinding operations can be performed as needed, and standard taps and dies can be used to machine threads.
- The machining process should always be kept dry, with no need for cutting oils or coolants.
- Cutting tools should be sharp and clean, and tools with negative rake angles should not be used.
- Care should be taken when clamping and securing materials to avoid applying excessive pressure. Climb milling techniques should be used to prevent edge and corner chipping.
Pyrolytic Boron Nitride Packaging
Pyrolytic Boron Nitride Ceramic products are carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
