Tantalum Ingot

Tantalum Ingot Data Sheet

Reference:	HMTA0016
Dimensions:	Diameter: φ 70-195 mm Length: 50-1600 mm Or customized according to specific requirements
Standard:	ASTM B364-92
Material:	R05200, R05400, R05252, R05255, R05240
Purity:	99%, 99.9%, 99.95%, 99.99%, 99.999%
Temper:	Annealed or Unannealed

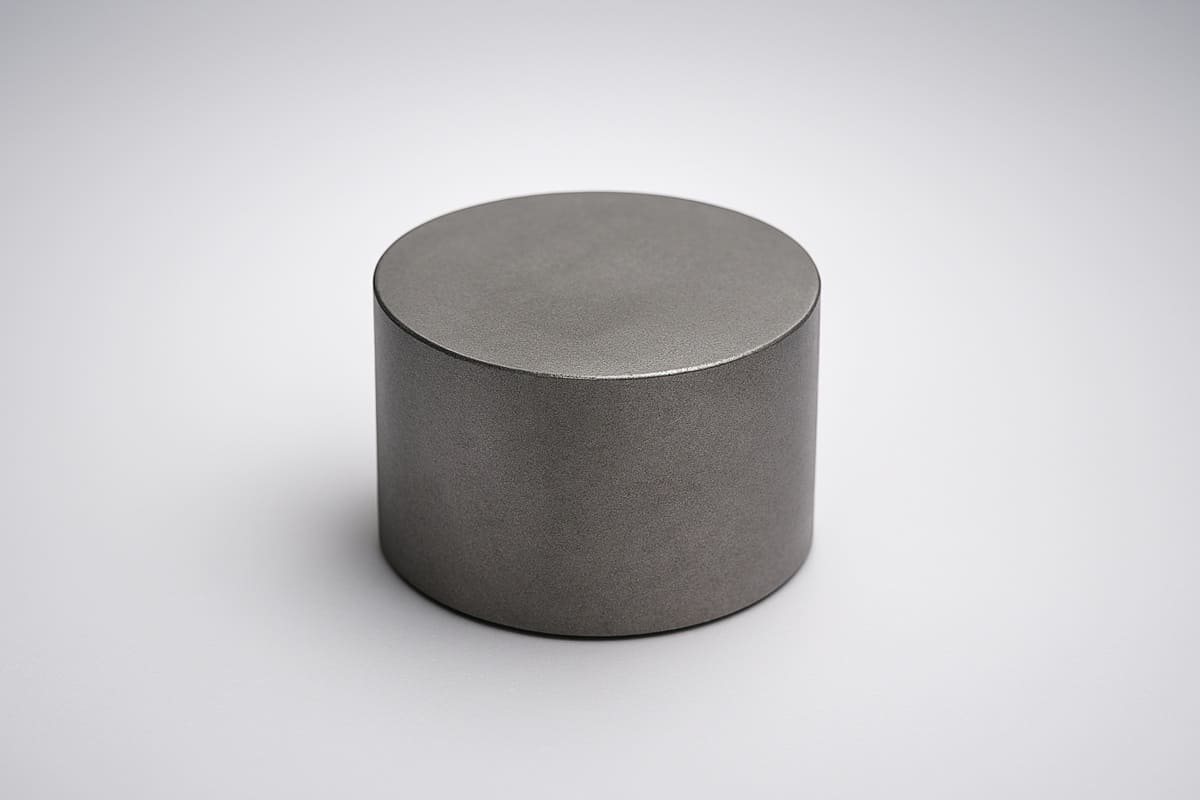

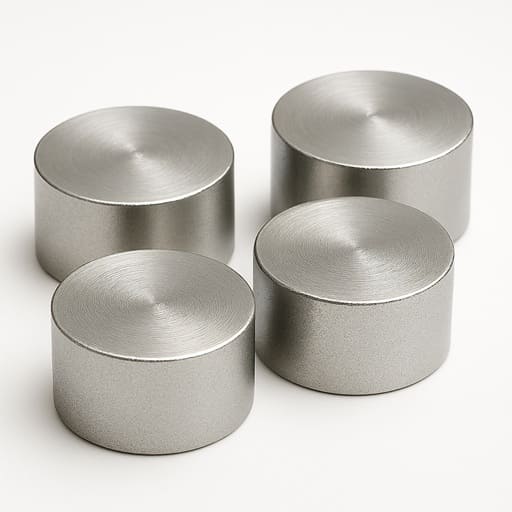

Tantalum Ingot

Tantalum ingot is made from high-purity tantalum metal, featuring a high melting point, excellent corrosion resistance, and good ductility. Commonly used as a raw material for producing tantalum wire, sheets, and other products, it is widely applied in electronics, aerospace, chemical, and medical industries due to its outstanding chemical stability and high-temperature performance.

Tantalum Ingot Materials Chemical Composition

Shanghai Yuepeng manufactures tantalum ingots in strict compliance with the ASTM B364-92 standard.

Material	Chemical Composition (≤wt%)
	C	N	O	H	Nb	Fe	Ti	W	Mo	Si	Ni	Ta
RO5200	0.010	0.010	0.015	0.0015	0.10	0.010	0.010	0.050	0.020	0.005	0.010	Bal.
RO5400	0.010	0.010	0.03	0.0015	0.10	0.010	0.010	0.050	0.020	0.005	0.010	Bal.
RO5255	0.010	0.010	0.015	0.0015	0.10	0.010	0.010	9.0～11.0	0.020	0.005	0.010	Bal.
RO5252	0.010	0.010	0.015	0.0015	0.50	0.010	0.010	2.0～3.5	0.020	0.005	0.010	Bal.
RO5240	0.010	0.010	0.020	0.0015	35.0～42.0	0.010	0.010	0.050	0.020	0.005	0.010	Bal.

Tantalum Ingot Properties

• High melting point (~ 3020 °C)
• Extremely high corrosion resistance
• High strength
• High ductility
• High wear resistance
• Good thermal stability
• High electrical and thermal conductivity
• Good biocompatibility

Tantalum  Ingot Applications

Tantalum Ingot is mainly used to manufacture various tantalum and tantalum alloy materials, widely applied in the following areas:

• Aerospace
• Chemical industry
• Medical industry
• Electronics
• Nuclear industry
• Metallurgy

Tantalum and Tantalum Alloy

• R05200, unalloyed tantalum, electron-beam furnace vacuum-arc melt, or both
• R05400, unalloyed tantalum, powder-metallurgy consolidation.
• R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.
• R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.
• R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

Tantalum Ingot Packaging

The Tantalum Ingot is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
