Tantalum Mesh

Tantalum Mesh Data Sheet

Reference:	HMTA0012
Type:	Expanded Mesh, Stamped Mesh, Wire Mesh
Specifications:	Wire Diameter: 0.02-23.7 mm Mesh: 0.3-400 mesh Aperture Ratio: 10%-90% Size: 5-2000 mm Width × Length
Standard:	ASTM B365，ASTM B708, ASTM F560 (Medical Grade)
Material:	Tantalum and Tantalum Alloy Wire (R05200, R05400, R05252, R05255, R05240)
Purity:	99%, 99.9%, 99.95%, 99.99%, 99.999%
Weaving Type:	Plain weave, twill weave, etc.
Temper:	Annealed or Unannealed

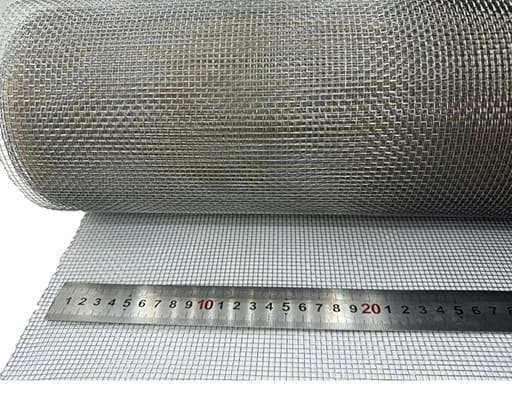

Tantalum Mesh

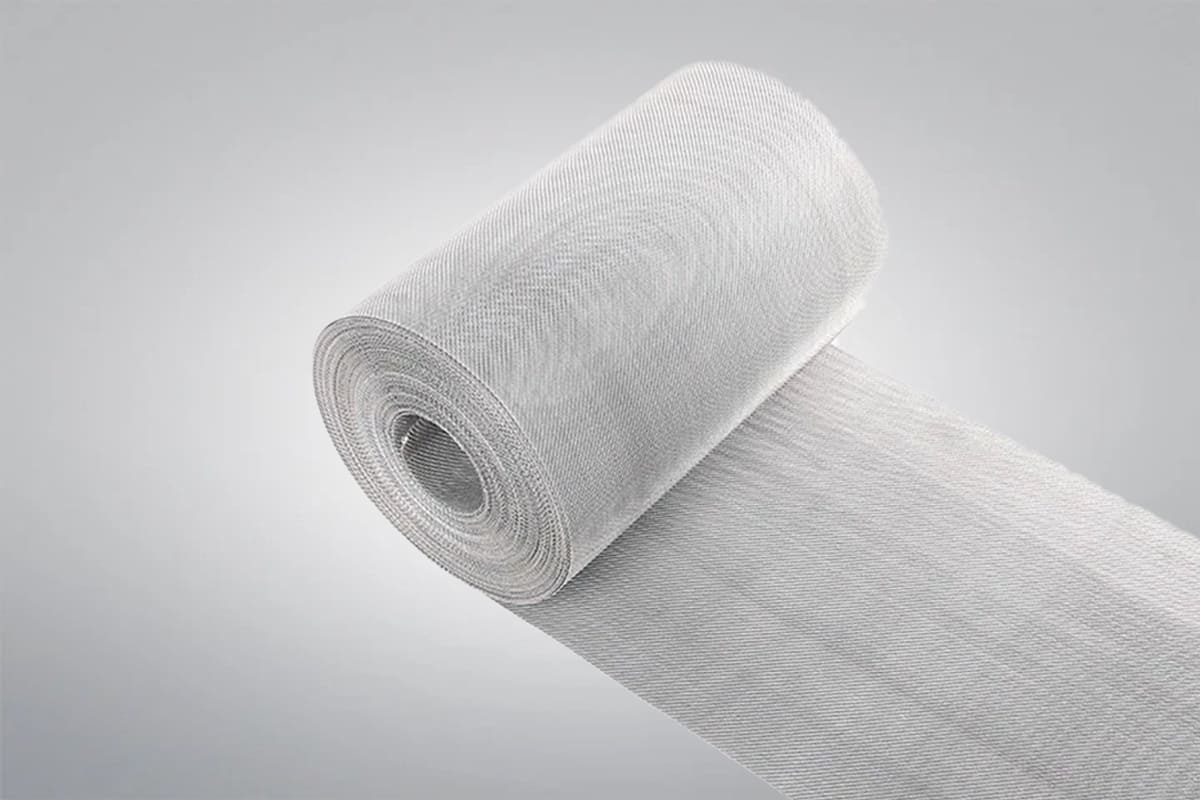

Tantalum Mesh is made from high-purity tantalum metal, offering excellent corrosion resistance, high melting point, and good mechanical strength. It is widely used in chemical processing, medical, and electronic industries, such as for filtration materials, implantable medical devices, or structural components in high-temperature environments. Its unique chemical stability and biocompatibility make it ideal for demanding applications.

Tantalum Mesh Materials Chemical Composition

Shanghai Yuepeng manufactures high-precision tantalum mesh with strict tolerances and compliance with the ASTM standard.

Material	Chemical Composition (≤wt%)
	C	N	O	H	Nb	Fe	Ti	W	Mo	Si	Ni	Ta
RO5200	0.010	0.010	0.015	0.0015	0.10	0.010	0.010	0.050	0.020	0.005	0.010	Bal.
RO5400	0.010	0.010	0.03	0.0015	0.10	0.010	0.010	0.050	0.020	0.005	0.010	Bal.
RO5255	0.010	0.010	0.015	0.0015	0.10	0.010	0.010	9.0～11.0	0.020	0.005	0.010	Bal.
RO5252	0.010	0.010	0.015	0.0015	0.50	0.010	0.010	2.0～3.5	0.020	0.005	0.010	Bal.
RO5240	0.010	0.010	0.020	0.0015	35.0～42.0	0.010	0.010	0.050	0.020	0.005	0.010	Bal.

Tantalum Mesh Types And Applications

Shanghai Yuepeng offers high-precision tantalum mesh in expanded, stamped, and woven forms, each tailored to meet specific application needs. We provide customized solutions based on individual requirements. Below are the regular specifications for each mesh type:

• Woven Tantalum Mesh: Made by interlacing tantalum wire into a mesh, this type offers superior flexibility and high tensile strength. Woven mesh is commonly used for filtration, catalyst support, and as a protective barrier in a variety of industries, including the medical, nuclear, and electronics sectors.

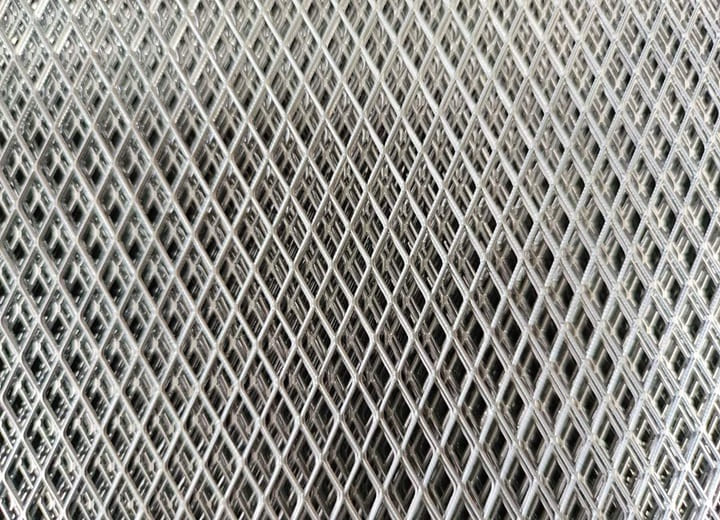

• Expanded Tantalum Mesh: This mesh is made by expanding solid tantalum sheets into a uniform grid pattern, offering excellent flexibility, durability, and strength. It is commonly used in filtration, separation, and protective applications, especially in high-temperature and corrosive environments.

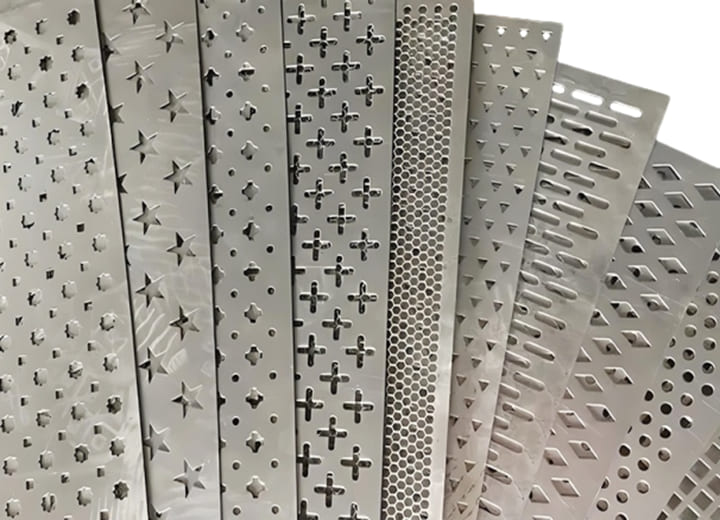

• Stamped Tantalum Mesh: Manufactured by stamping or punching a pattern from a solid tantalum sheet, this mesh is ideal for applications requiring precise, strong, and durable mesh with specific hole patterns. It is widely used in chemical processing, electronics, and aerospace industries where uniformity and precision are essential.

Tantalum Mesh Specifications

Shanghai Yuepeng can provide customized solutions for tantalum mesh to meet specific requirements. The regular specifications are as follows:

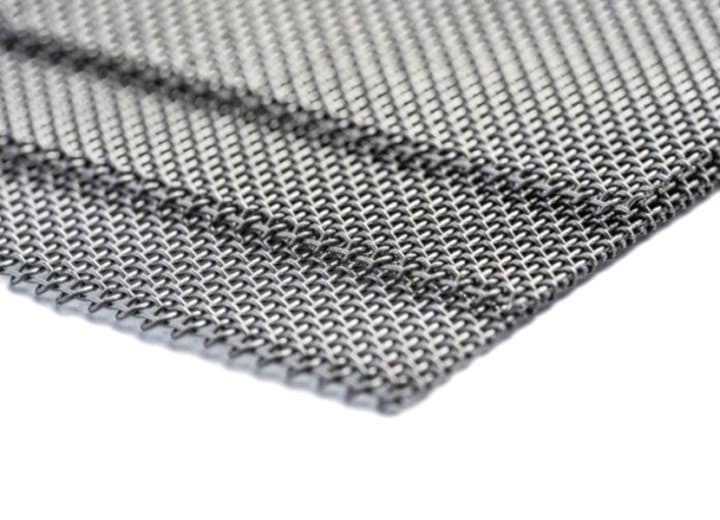

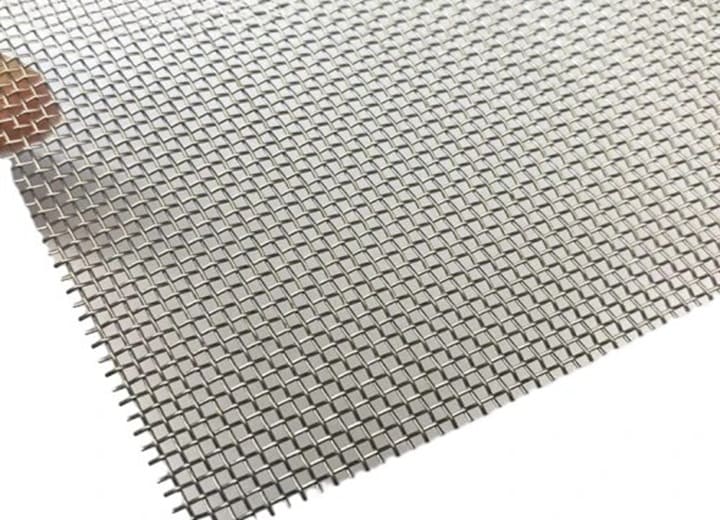

Plain ＆ Twill Weave Tantalum Wire Mesh

mesh	Wire Diameter		Weaving Type	Mesh Opening		Open Area
	inch	mm		inch	mm
8 × 8	0.0200	0.508	Plain	0.1050	2.6670	70.60
14 × 14	0.0160	0.4064	Plain	0.0554	1.4072	60.20
30 × 30	0.0030	0.0762	Plain	0.0303	0.7696	82.80
35 × 35	0.0078	0.1981	Twill	0.0208	0.5283	52.90
50 × 50	0.0030	0.0762	Plain	0.0170	0.4318	72.30
80 × 80	0.0030	0.0762	Plain	0.0095	0.2413	57.80
100 × 100	0.0030	0.0762	Twill	0.0070	0.1778	49.00

Dutch Weave of Tantalum Wire Mesh

Mesh Size (wire/inch)	Wire Diameter
	Inch	mm
12 × 64	0.0228/0.0157	0.580/0.400
24 × 110	0.0142/0.0098	0.360/0.250
14 × 88	0.0197/0.0130	0.500/0.330
14 × 110	0.0157/0.0106	0.400/0.270
30 × 150	0.0071/0.0055	0.180/0.140
40 × 200	0.0055/0.0043	0.140/0.110
50 × 250	0.0039/0.0028	0.100/0.071
80 × 700	0.0024/0.0020	0.060/0.050
165 × 800	0.0028/0.0016	0.071/0.040
165 × 1400	0.0020/0.0013	0.050/0.032
200 × 1800	0.0020/0.0012	0.050/0.030
325 × 2300	0.0012/0.0010	0.030/0.025
400 × 2800	0.0012/0.0008	0.030/0.020

Tantalum and Tantalum Alloy

• R05200, unalloyed tantalum, electron-beam furnace vacuum-arc melt, or both
• R05400, unalloyed tantalum, powder-metallurgy consolidation.
• R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.
• R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.
• R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

Tantalum Mesh Packaging

The Tantalum Mesh is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
