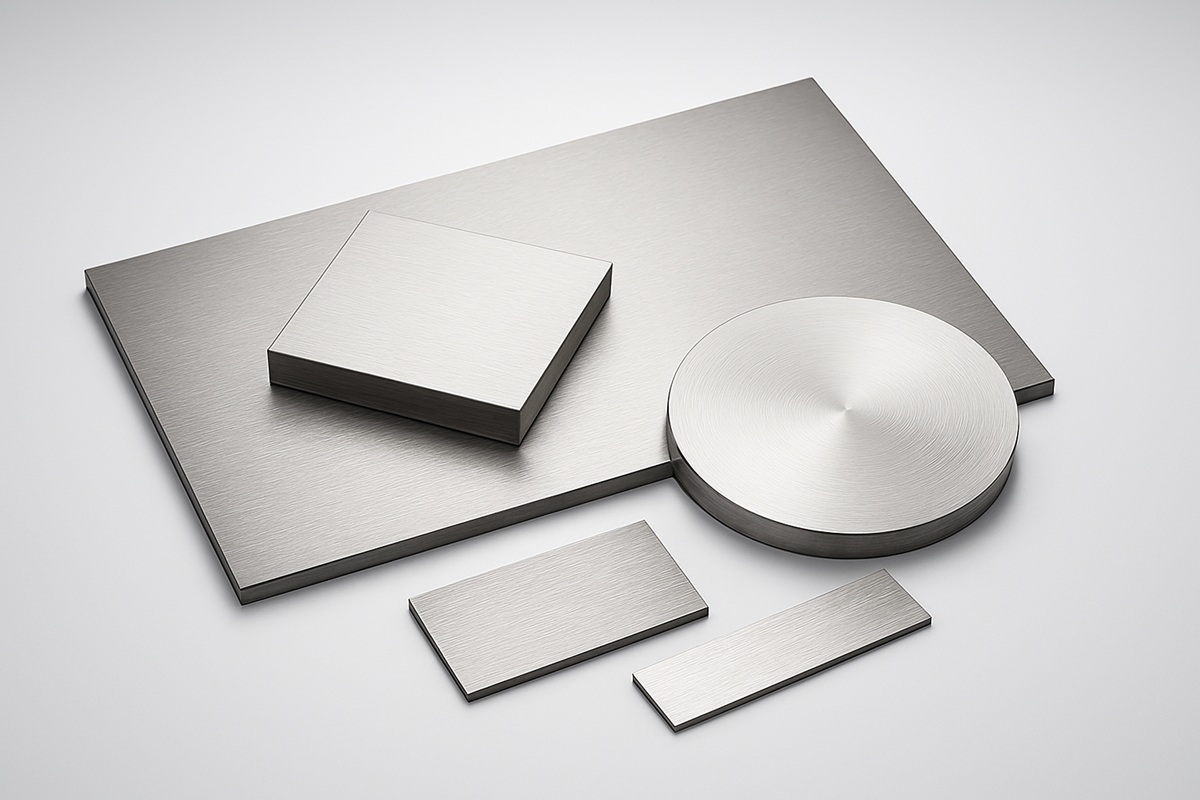

Tantalum Plate/Sheet/Disc

Tantalum Plate/Sheet/Disc Data Sheet

Reference:	HMTA0015
Dimensions:	Plate: Thickness >0.1875″ × Width >6″ × Length <7ft Sheet: Thickness 0.001″-0.1875″ × Width >6″ × Length Disc: Diameter 0.1″- 36″ × Thick 0.04″-5″
Standard:	ASTM B708, ASTM B365,  ASTM F560 (Medical Grade)
Material:	R05200, R05400, R05252, R05255, R05240
Purity:	99%, 99.9%, 99.95%, 99.99%, 99.999%
Temper:	Annealed or Unannealed

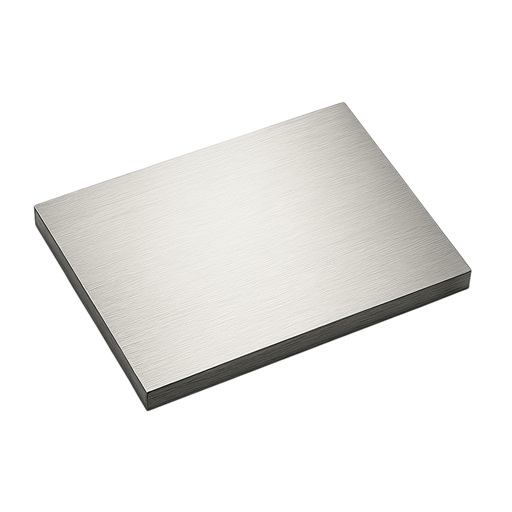

Tantalum Plate

Tantalum and Tantalum Alloy plates are produced through a rolling process, offering exceptional performance and a uniform grain structure. The thickness is typically >0.1875″. The products are strictly manufactured according to ASTM B708 standards and can be customized to meet specific customer requirements.

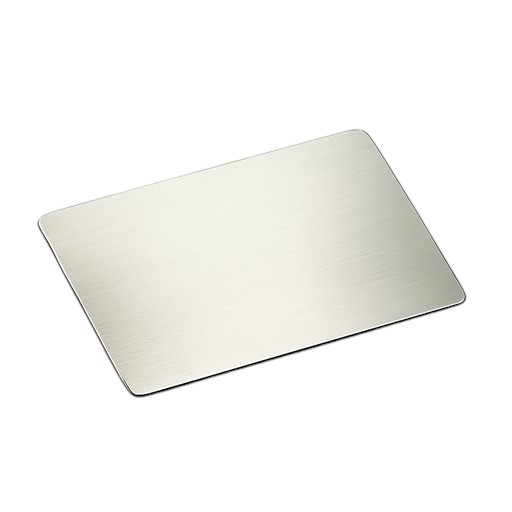

Tantalum Sheet

Tantalum and Tantalum Alloy sheets exhibit excellent deformability even at temperatures below room temperature, allowing for easy punching, cutting, drawing, and pressing. The thickness is typically <0.1875″. Shanghai Yuepeng can cut it to exact dimensions with very tight tolerances.

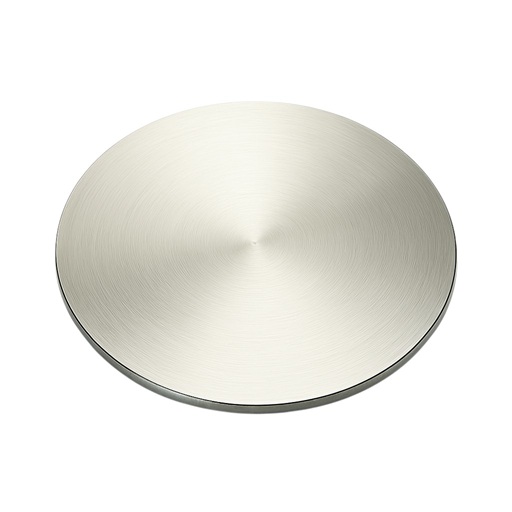

Tantalum Disc

Tantalum and Tantalum Discs are manufactured through a rolling process. The regular dimensions in stock are as follows:

Code	Product	Purity	Dimensions
EJTTAXX351A2	Tantalum Disc	Ta, 99.95%	1.00″ Dia. x 0.125″ Thick
EJTTAXX351A4	Tantalum Disc	Ta, 99.95%	1.00″ Dia. x 0.250″ Thick
EJTTAXX352A2	Tantalum Disc	Ta, 99.95%	2.00″ Dia. x 0.125″ Thick
EJTTAXX352A4	Tantalum Disc	Ta, 99.95%	2.00″ Dia. x 0.250″ Thick
EJTTAXX353A2	Tantalum Disc	Ta, 99.95%	3.00″ Dia. x 0.125″ Thick
EJTTAXX353A4	Tantalum Disc	Ta, 99.95%	3.00″ Dia. x 0.250″ Thick
EJTTAXX354A2	Tantalum Disc	Ta, 99.95%	4.00″ Dia. x 0.125″ Thick
EJTTAXX354A4	Tantalum Disc	Ta, 99.95%	4.00″ Dia. x 0.250″ Thick
EJTTAXX356A4	Tantalum Disc	Ta, 99.95%	6.00″ Dia. x 0.250″ Thick
EJTTAXX358A2	Tantalum Disc	Ta, 99.95%	8.00″ Dia. x 0.125″ Thick
EJTTAXX358A4	Tantalum Disc	Ta, 99.95%	8.00″ Dia. x 0.250″ Thick

Tantalum  Plate/Sheet/Disc Applications

• Electronics: Tantalum plates, sheets, and discs are widely used in capacitors for communications, computing, automotive electronics, and aerospace applications.
• Chemical Industry: Tantalum plates, sheets, and discs are used in manufacturing reactors, heaters, coolers, and other chemical processing equipment.
• Medical: Tantalum plates, sheets, and discs are used to make medical implants and instruments, including bone plates and sutures.
• Aerospace: Tantalum plates, sheets, and discs are essential for high-temperature components and protective materials in aerospace applications.
• Nuclear: Tantalum plates, sheets, and discs are used in structural materials for nuclear reactors and fuel cladding.

Tantalum and Tantalum Alloy

• R05200, unalloyed tantalum, electron-beam furnace vacuum-arc melt, or both
• R05400, unalloyed tantalum, powder-metallurgy consolidation.
• R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.
• R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.
• R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

Tantalum Plate/Sheet/Disc Packaging

The Tantalum Plate/Sheet/Disc is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
