Tantalum Rod/Bar

tantalum rod/bar

Tantalum Rod/Bar

  • Custom sizes and standard sizes in stock
  • Quick Lead Time
  • Competitive Price

Tantalum Rod/Bar is manufactured in compliance with ASTM B365 standards. Our product range also includes Tantalum Alloy Rods, such as Ta10W and Ta2.5W Rods. As a leading supplier and manufacturer of premium tantalum products, Shanghai Yuepeng utilizes advanced machining centers to produce high-precision tantalum and tantalum alloy rods and bars for a wide range of applications.

Get a Quote

Tantalum Rod/Bar Data Sheet

Reference:HMTA0007
Dimensions:Rod: 0.125″ – 8″ Dia. x < 10′ L
Bar: 0.1″ x 0.1″ x L
Standard:ASTM B365, ASTM F560 (Medical Grade)
Material:R05200, R05400
Purity:99%, 99.9%, 99.95%, 99.99%, 99.999%
Temper:Annealed or Unannealed

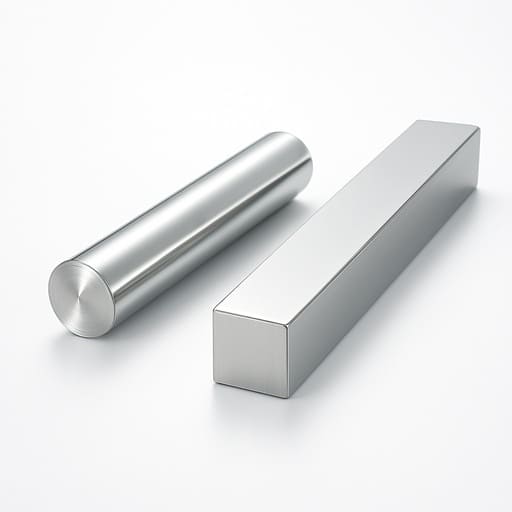

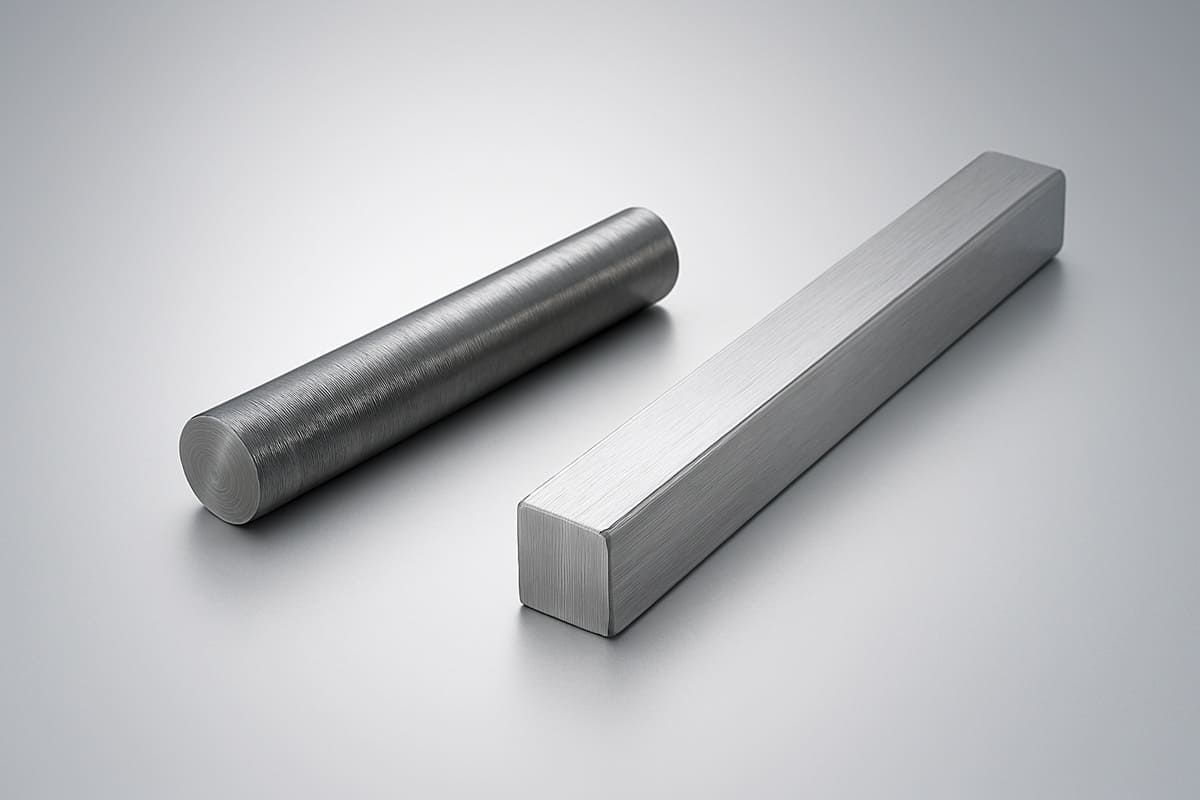

Tantalum Rod and Tantalum Bar

Tantalum Rod is made from high-purity tantalum metal, known for its excellent corrosion resistance, high melting point (around 3000℃), and outstanding oxidation resistance. It is commonly used to produce high-performance capacitors, transistors, chemical reactors, and high-temperature components. Tantalum Bar has a square or rectangular cross-section. Shanghai Yuepeng can provide custom sizes, shapes, and compositions to meet specific demands.

  • tantalum rod/bar

Tantalum  Rod/Bar Applications

  • Electronics: These are used as electrode materials for capacitors.
  • Aerospace: Used to manufacture engine components and gas turbines.
  • Chemical industry: Used as an ideal material for handling strong acids and alkalis.
  • Medical: Used in the production of artificial joints and medical devices.
  • Defense and Aerospace
  • Medical Devices

    • Tantalum and Tantalum Alloy

    • R05200, unalloyed tantalum, electron-beam furnace vacuum-arc melt, or both
    • R05400, unalloyed tantalum, powder-metallurgy consolidation.
    • R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.
    • R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.
    • R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

    Tantalum Rod/Bar Packaging

    The Tantalum Rod/Bar is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

    Tantalum Rod In Stock

    Catalog NumberChemical FormulaDiameterPurityTemper
    TA007910Ta1.0 mm99.95%As Rolled
    TA007915Ta1.5 mm99.95%Annealed
    TA007917Ta1.7 mm99.95%Annealed
    TA007920Ta2.0 mm99.95%Annealed
    TA007926Ta3.0 mm99.95%Annealed
    TA007930Ta5.0 mm99.95%Annealed
    TA007935Ta6.35 mm99.95%Annealed
    TA007940Ta10.0 mm99.95%Annealed
    TA007942Ta12.7 mm99.95%Annealed
    TA007945Ta16 mm99.95%As drawn
    TA007948Ta18 mm99.95%Annealed
    TA007950Ta20.0 mm99.95%Annealed
    TA007955Ta25 mm99.95%As Rolled
    TA007960Ta30.0 mm99.95%Unannealed
    TA007961Ta30 mm99.95%As Rolled
    TA007970Ta40.0 mm99.95%Unannealed
    TA007972Ta50 mm99.95%Annealed
    TA007975Ta75 mm99.95%Annealed
    TA007995Ta100 mm99.95%As Rolled

    Tantalum Properties

    ItemValue
    Atomic number73
    Crystal structureBody centred cubic
    Electronic structureXe 4f¹⁴ 5d³ 6s²
    Valences shown2,3,4,5
    Atomic weight( amu )180.9479
    Thermal neutron absorption cross-section( Barns )22
    Photo-electric work function( eV )4.1
    Natural isotope distribution( Mass No./% )180/ 0.012
    Natural isotope distribution( Mass No./% )181/ 99.988
    Atomic radius – Goldschmidt( nm )0.147
    Ionisation potential( No./eV )1/ 7.88
    Ionisation potential( No./eV )2/ 16.2
    ItemValue
    Material conditionUnannealed (Hard)
    Material conditionAnnealed (Soft)
    Poisson’s ratio0.342
    Poisson’s ratio0.342
    Bulk modulus( GPa )196.3
    Bulk modulus( GPa )196.3
    Tensile modulus( GPa )185.7
    Tensile modulus( GPa )185.7
    Hardness – Vickers( kgf mm⁻² )200
    Hardness – Vickers( kgf mm⁻² )90
    Tensile strength( MPa )760
    Tensile strength( MPa )172-207
    Yield strength( MPa )705
    Yield strength( MPa )310-380
    ItemValue
    Electrical resistivity( µOhmcm )13.5@20@20°C
    Superconductivity critical temperature( K )4.47
    Temperature coefficient( K⁻¹ )0.0035@0-100°C
    Thermal emf against Pt (cold 0C – hot 100C)( mV )0.33
    ItemValue
    Boiling point( °C )5425
    Density( gcm⁻³ )16.6@20°C
    ElementValue
    Melting point( °C )2996
    Latent heat of evaporation( J g⁻¹ )4165
    Latent heat of fusion( J g⁻¹ )174
    Specific heat( J K⁻¹ kg⁻¹ )140@25°C
    Thermal conductivity( W m⁻¹ K⁻¹ )57.5@0-100
    Coefficient of thermal expansion( x10⁻⁶ K⁻¹ )6.5@0-100°C

    Download

    • Company Profile

    Get A Quote

    We will check and get back to you in 24 hours.

    To customize your tantalum rod or tantalum bar, please provide the following details:

    1. Diameter x Length (for rods)
    2. Length x Width x Height (for bars)
    3. Quantity of the rods or bars you need
    4. Alternatively, you can provide a drawing with your specifications.

    Once we have these details, we can provide you with a quote within 24 hours.

    We carry a wide variety of tantalum and tantalum alloy products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

    DFARS (Defense Federal Acquisition Regulation Supplement) compliance is primarily concerned with the sourcing of materials for defense-related applications in the United States. According to DFARS, certain materials used in defense must be sourced from the United States or qualifying countries.

    If you have specific tantalum materials that are subject to DFARS, please let us know in advance and we will confirm.

    At Shanghai Yuepeng Tech, we take this responsibility seriously. We adhere to all applicable laws and regulations, including Section 1502 of the Dodd-Frank Act. Our company operates with a strict code of ethics and is committed to only partnering with suppliers who share our dedication to responsible sourcing. We support the initiatives and programs aimed at promoting “conflict-free” supply chains and work diligently to ensure that our products meet these standards.

    Tantalum is soft and ductile but work-hardens easily and can gall. Use sharp, positive-rake carbide or diamond tools, employ low speeds with high feed rates, and apply ample coolant (e.g., oil-based emulsion) to dissipate heat and prevent galling.

    The most common standard is ASTM B365, which specifies requirements for chemical composition, mechanical properties, and dimensional tolerances of tantalum and tantalum alloy rod, bar, and wire for electronic and chemical applications.

    Common grades include: R05200 (unalloyed, 99.95% purity), R05400 (unalloyed, 99.95% purity with lower interstitial elements), and R05255 (Ta-W alloy, 90% Ta & 10% W for higher strength).

    Shanghai Yuepeng Tech, established in 2022 in Shanghai, China, is a specialized supplier and manufacturer of tantalum and tantalum alloys. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.
