Tungsten Foam

Tungsten Foam Data Sheet

Reference:	HMWW1497
Material:	Tungsten
Purity:	99%, 99.9%, 99.95%, 99.99%, 99.999%
Shape:	Disc, Sheet, Tube, or Customized

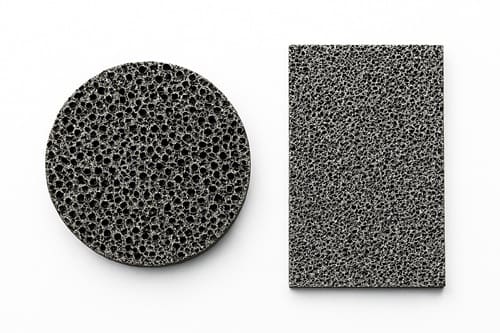

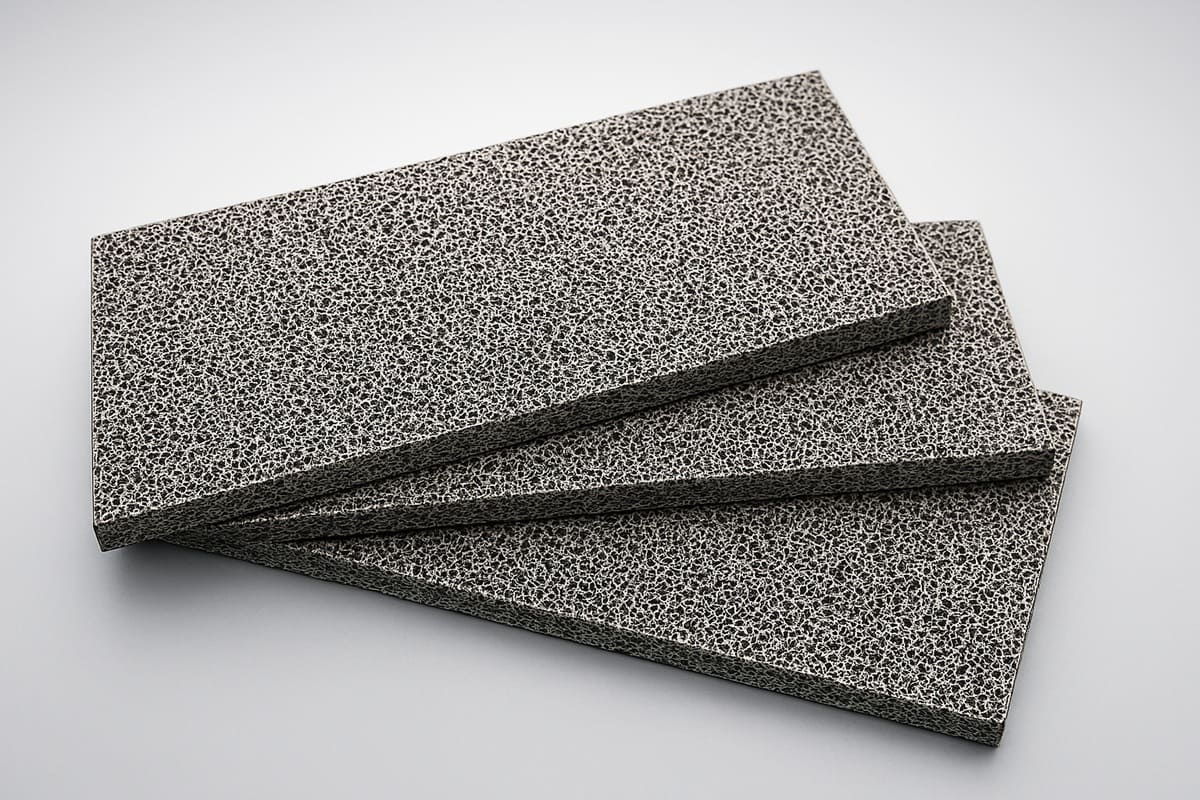

Tungsten Foam

Tungsten Foam is a high-performance tungsten material with a porous structure, characterized by low density, high porosity, and large specific surface area. Its exceptional resistance to high temperatures and corrosion makes it suitable for use in harsh environments. As a result, tungsten foam has important applications in the fields of national defense, military, aerospace, and electronics. Shanghai Yuepeng can offer customized solutions for cell size, thickness, shape, and other parameters to meet specific requirements.

Tungsten Foam Material Chemical Composition

W (>%)	Chemical Content (<%)
99.999 W1	Fe	Ca	Be	Sn	Al	Ni	Zn	Sb	Pt	K	Ta	Na
	0.0001	0.00005	0.000005	0.000005	0.00005	0.00001	0.00005	0.00005	0.00003	0.000005	0.0001	0.00005
	Cr	Pb	As	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.000005	0.00001	0.00005	0.00005	0.000005	0.00001	0.00001	0.000005	0.000007	0.00001	0.000005	0.000005
99.99 W2	Fe	Ca	Be	Sn	Al	Ni	Zn	Sb	Pt	K	O	Na
	0.0001	0.00045	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0005	0.0040	0.0009
	Cr	Pb	As	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0002	0.0001	0.0001	0.0001	0.0001	0.0001
99.95 W3	Fe	Ca	P	Sn	Al	Ni	N	Sb	Si	O	Pb	As
	0.005	0.003	0.001	0.0001	0.002	0.003	0.003	0.001	0.003	0.003	0.0001	0.002
	Mg	C	Bi	Mo
	0.002	0.005	0.0001	0.001

Tungsten Foam Features

• Uniform pore size, stable pore space, and high separation efficiency.
• High porosity, low filtration resistance, high permeability efficiency.
• Good chemical stability, acid and alkali corrosion resistance, and antioxidant performance.
• Good mechanical properties, low differential pressure, high flow rate.
• Strong anti-microbial ability, no interaction with microorganisms.
• Online regeneration is easy to clean and has a long service life.
• Excellent electromagnetic wave shielding performance.
• Good damping and shock resistance properties.

Metal Foam Production Methods

• The molten metal foaming method
• Powder foaming method
• Spray foaming method
• Sintering of the machine matrix by immersion slurry drying
• Loose powder sintering method

Tungsten Foam Applications

• Defense and Military: The high strength and high-temperature resistance of tungsten foam have led to its use in protective armor and ballistic protection materials.
• Atomic Energy: Due to its good corrosion resistance and high-temperature stability, tungsten foam is used as a structural and shielding material in nuclear reactors.
• Aerospace: The lightweight and high-strength properties of tungsten foam make it suitable for structural components and protective systems for aerospace vehicles.
• Electronic information: tungsten foam’s high thermal conductivity and electrical conductivity make it important in the heat dissipation materials of electronic devices and electromagnetic shielding materials.

Tungsten Foam Packaging

The Tungsten Foam is carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
